1-10pcs/ BMI160 Latest Stance Accelerometer Gyroscope module 6 Dof inertial Measurement Sensors

1-10pcs/ BMI160 Latest Stance Accelerometer Gyroscope module 6 Dof inertial Measurement Sensors

Regular price $1.71 USD
Regular price Sale price $1.71 USD
Sale Sold out
Taxes included.

SPECIFICATIONS

Dissipation Power: 1

Brand Name: NoEnName_Null

Model Number: BMI160

Package: SMD

Origin: Mainland China

is_customized: Yes

Condition: New

Type: Voltage Regulator

Supply Voltage: 1

Choice: yes

semi_Choice: yes

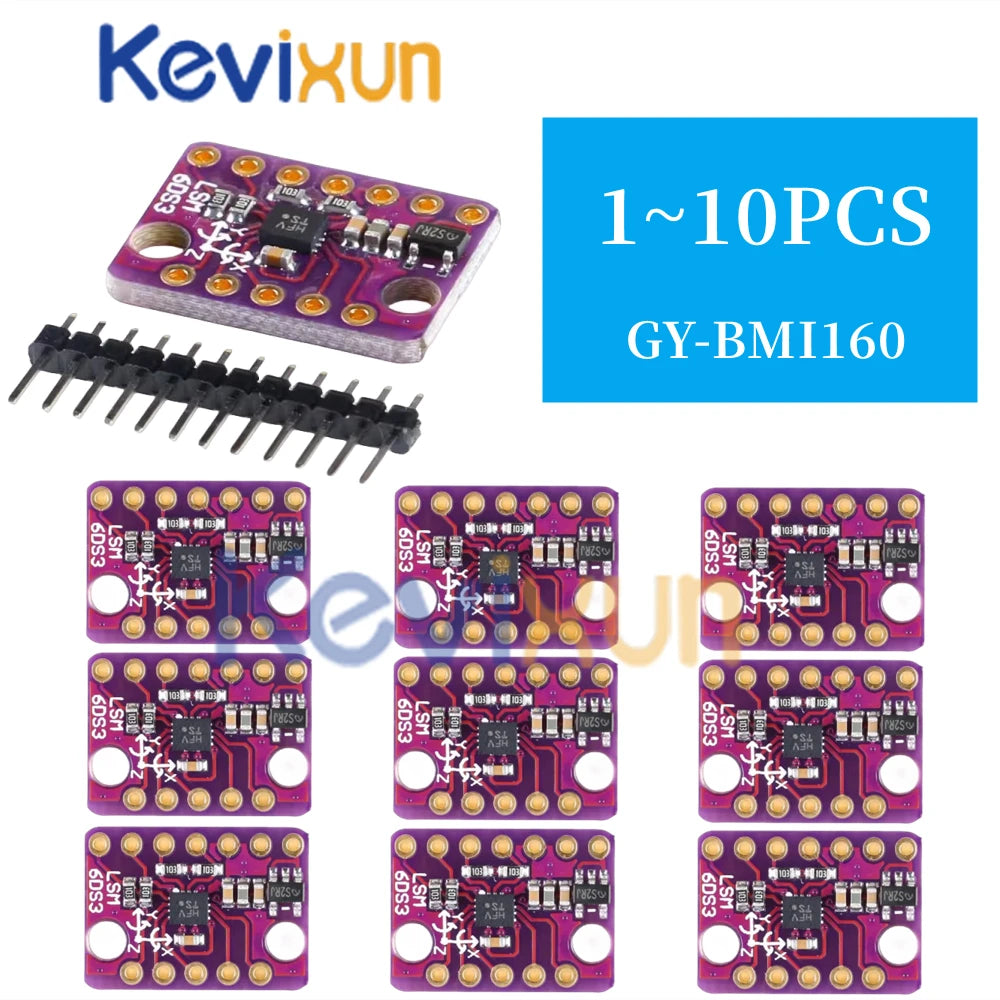

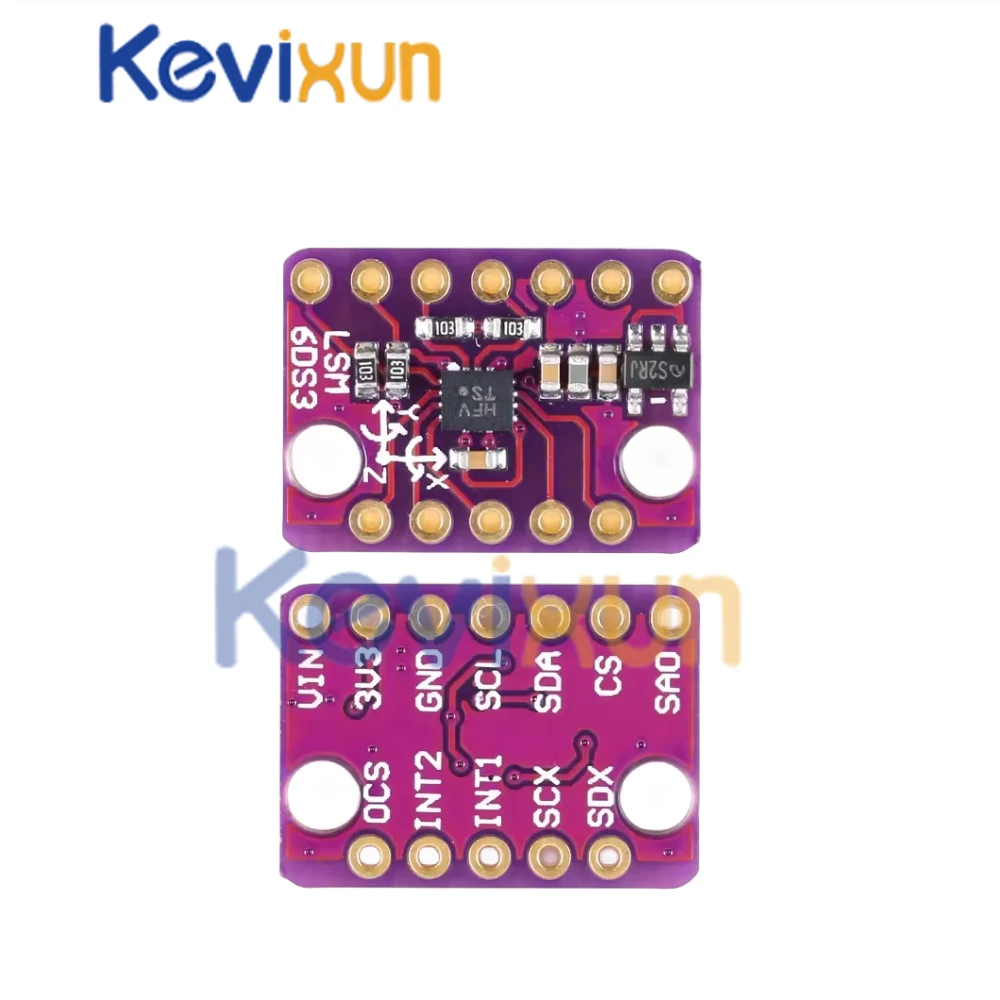

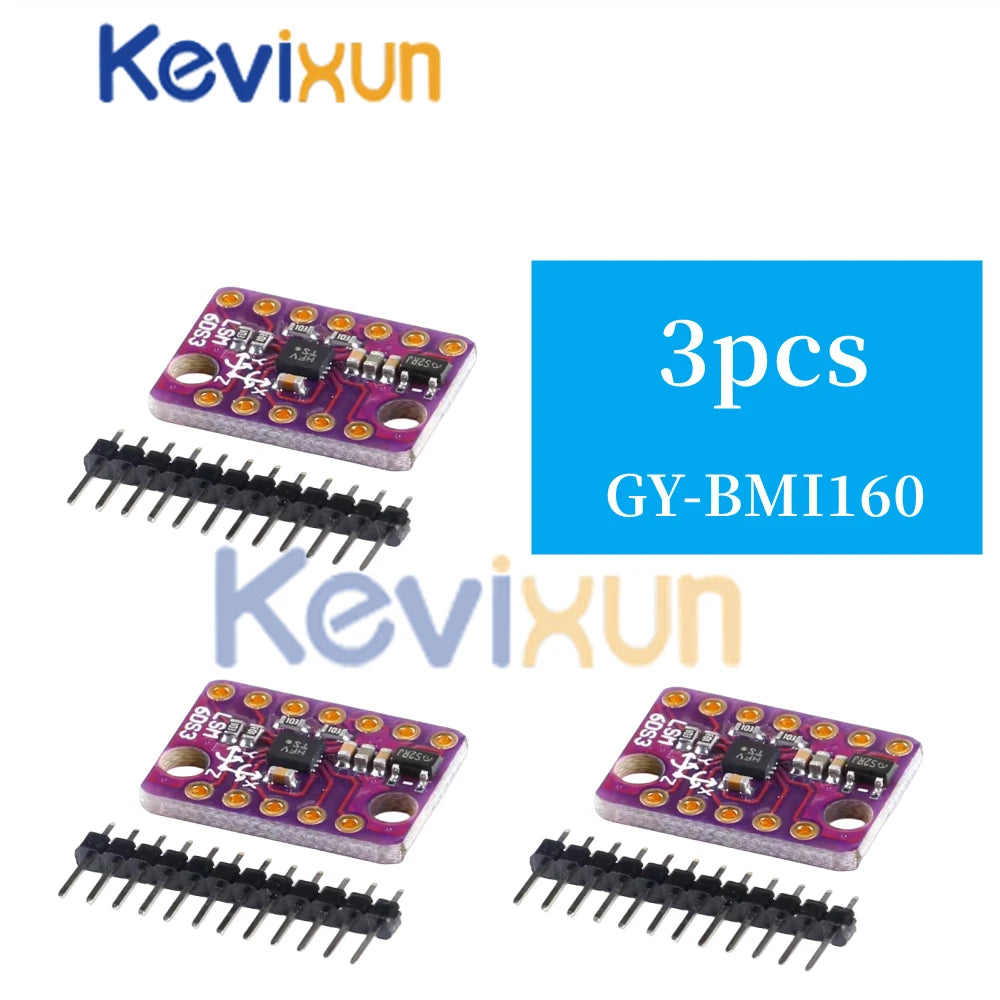

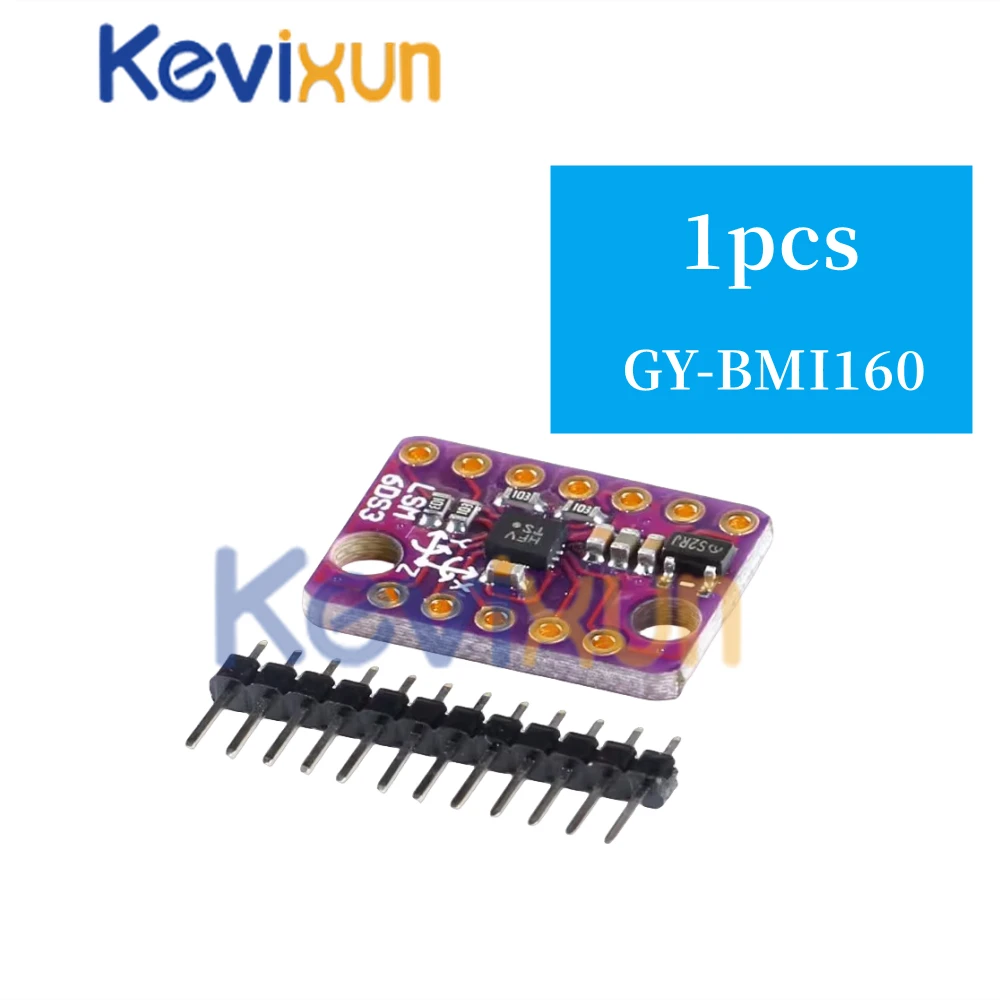

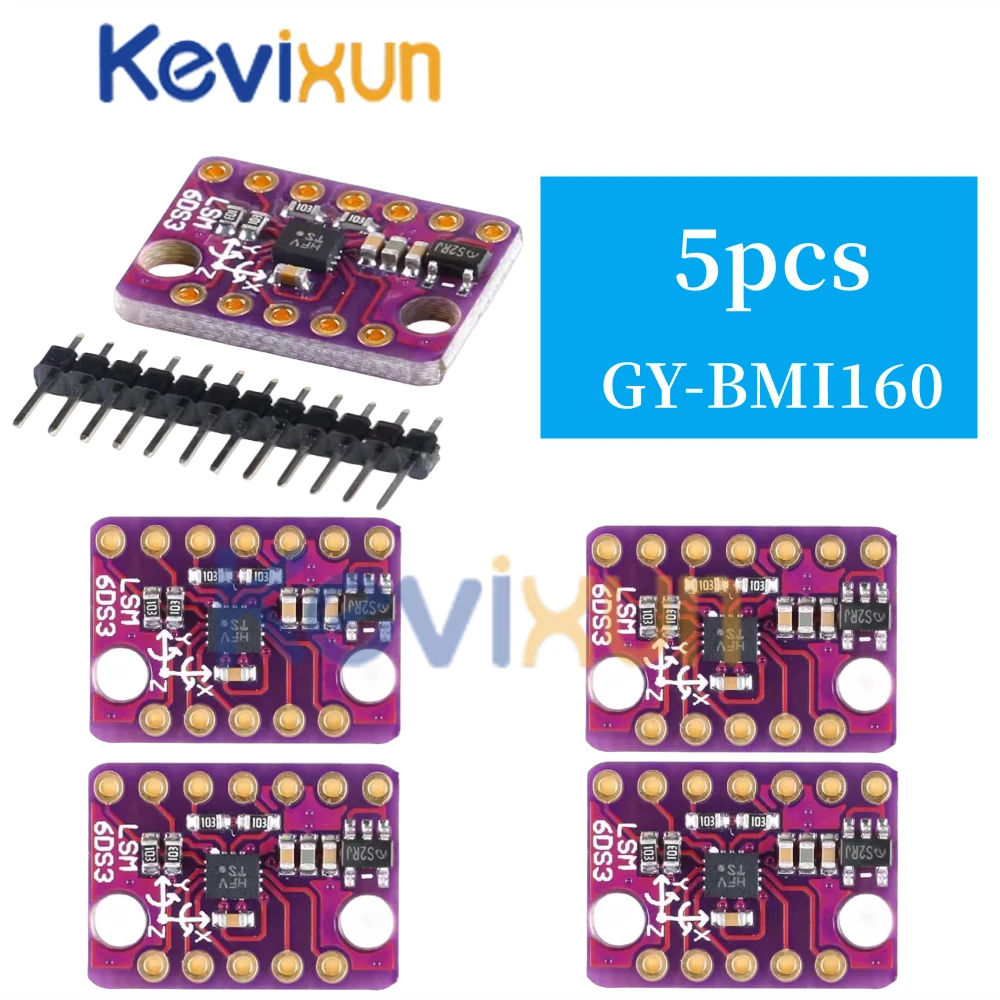

GY-BMI160 module (three-axis gyroscope + three-axis acceleration)
Chip used: BMI160
Power supply: 3-5v (internal low pressure difference voltage regulator)
Communication mode: Standard IIC/SPI communication protocol
Chip built-in 16bit AD converter,16 bit data output
Gyro range: ±125 ±250 ±500 ±1000 ±2000 °/s
Acceleration range: ±2±4±8±16g
Metal-sunk PCB, machine welding process to ensure quality
Pin spacing 2.54mm
Module size 13mm*18mm


The BMI160 is a small, low power, low noise 16-bit inertial measurement unit designed for use in mobile applications like augmented reality or indoor navigation which require highly accurate, real-time sensor data.
In full operation mode, with both the accelerometer and gyroscope enabled, the current consumption is typically 950 μA, enabling always-on applications in battery driven devices. It is available in a compact 14-pin 2.5 x 3.0 x 0.8 mm3 LGA package."
Applications
- Augmented reality and immersive gaming
- 3D-scanning and indoor mapping
- Indoor navigation, pedestrian dead-reckoning, step-counting
- 6- and 9-axis sensor fusion, air mouse applications
