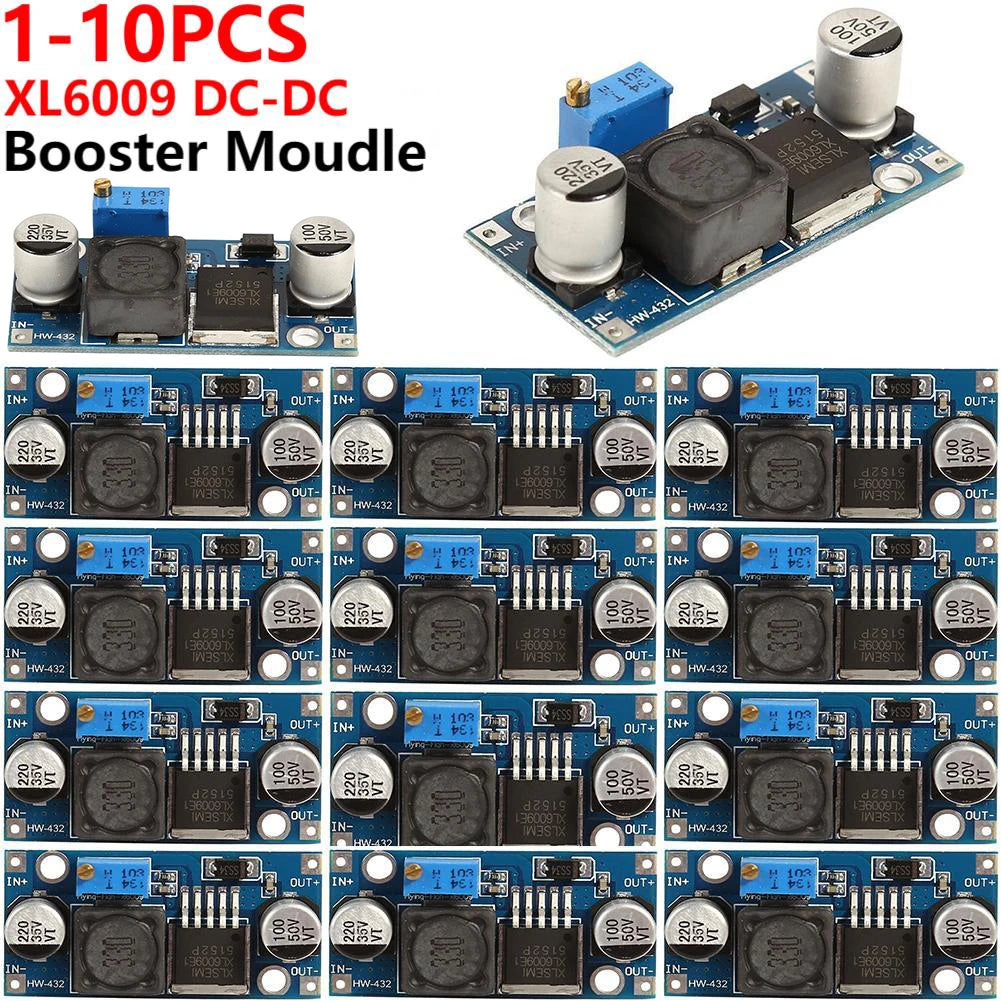

Description:

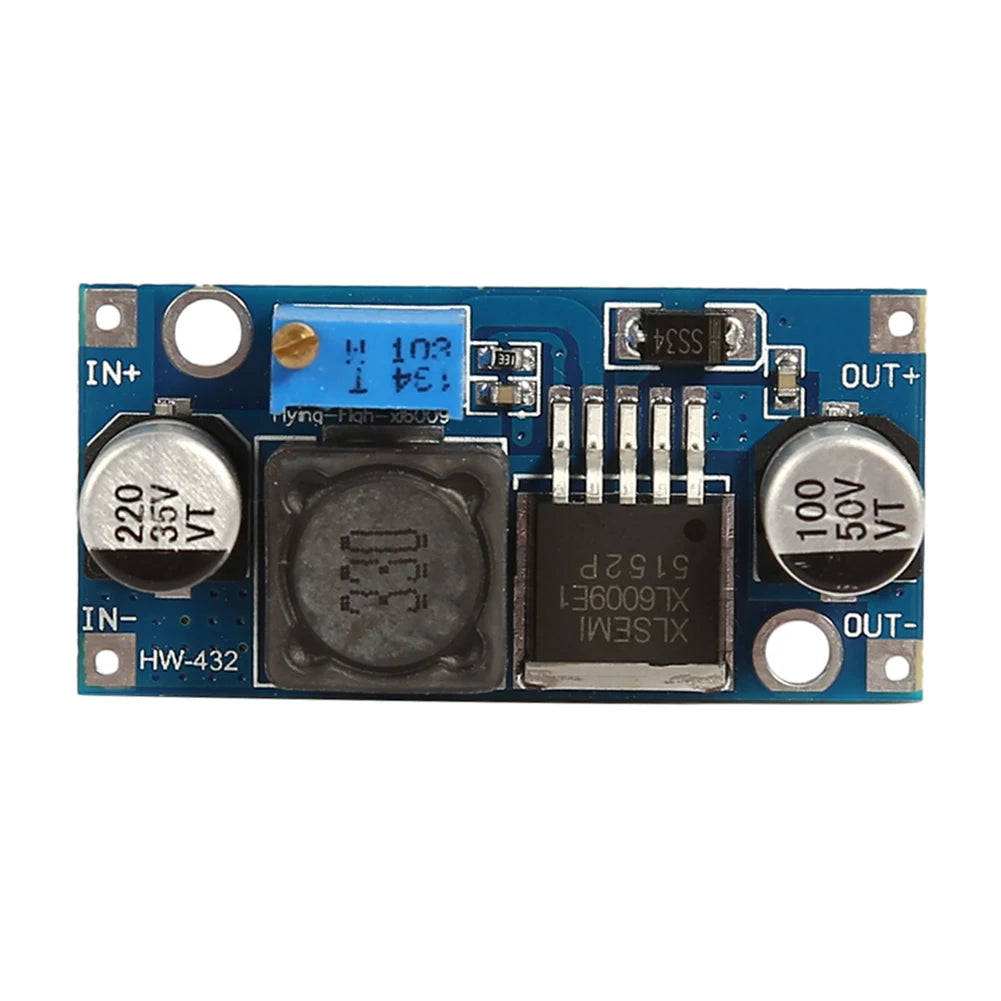

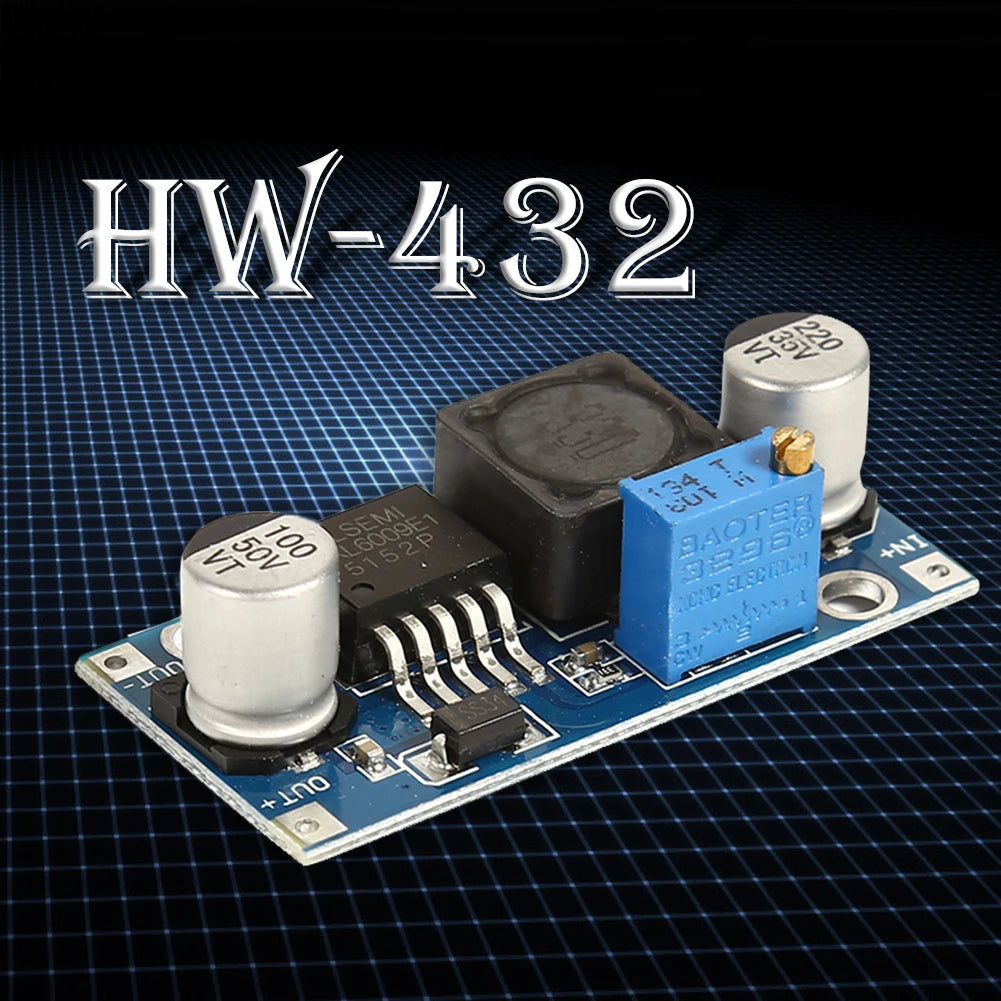

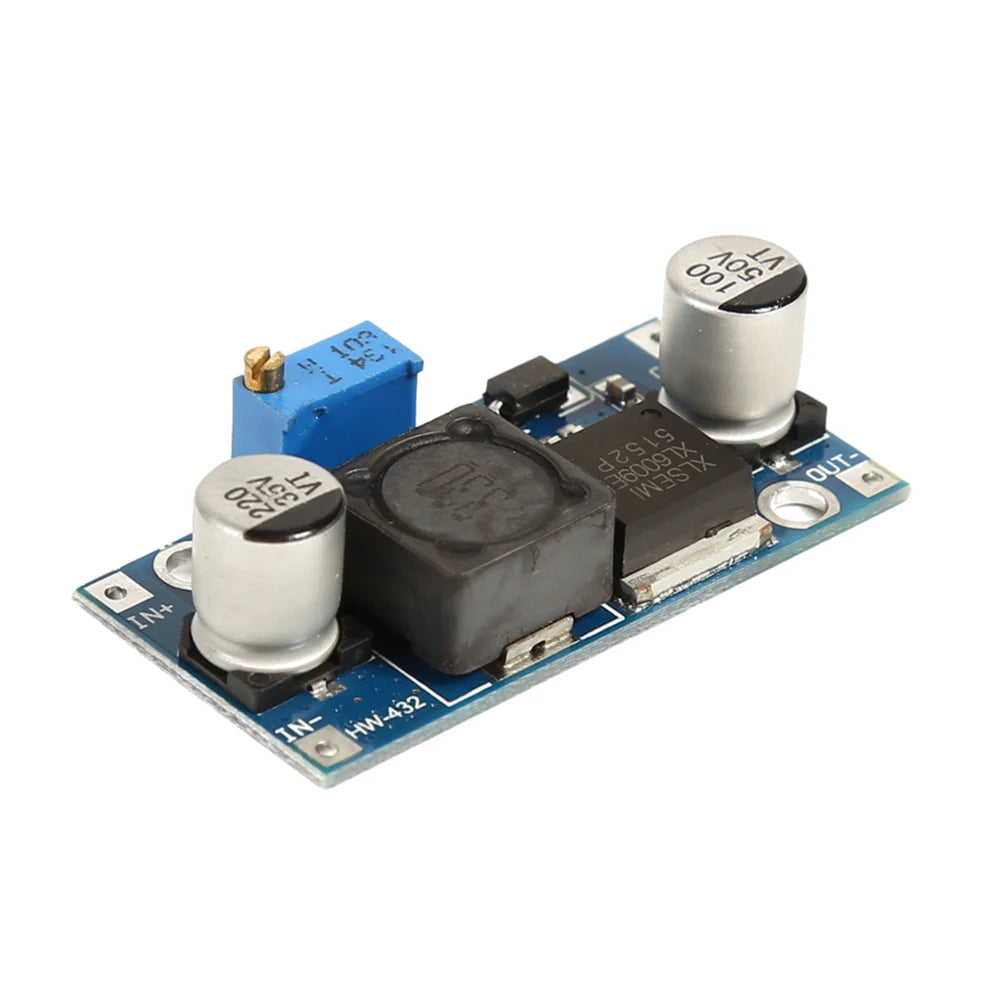

1. DSN6009 is a high performance boost (BOOST) module for 4A switching current. The module uses XL6009E1 as the core chip of the second generation high frequency switch technology, and its performance is far superior to LM2577 of the first generation technology. XL6009 booster module has lower cost and better performance.
2. Ultra-wide input voltage is 3V~32V, and the optimum operating voltage range is 5~32V. Ultra-wide output voltage 5V~35V.
3. Built-in 4A high-efficiency MOSFET switch, making efficiency up to 94%; (LM2577 current only 3A).
4. Ultra-high switching frequency 400KHz, can use small capacity filter capacitor that can achieve very good results, smaller ripple, smaller volume. (LM2577 frequency is only 50KHz).

Specification:
Modular Properties: Non-Isolated Boost (BOOST)
Rectifier: Asynchronous Rectifier
Input range: 3V-32V
Output range: 5V-35V
Input current: 4A (maximum), no-load 18mA (5V input, 8V output, no-load less than 18mA). The higher the voltage, the greater the no-load current.
Conversion efficiency: <94% (the greater the pressure difference, the lower the efficiency)
Switching frequency: 400KHz
Output ripple: 50mV (the higher the voltage, the greater the current, the greater the ripple)
Load adjustment rate: ±0.5%
Voltage adjustment rate: ±0.5%
Working Temperature: -40℃~ +85℃

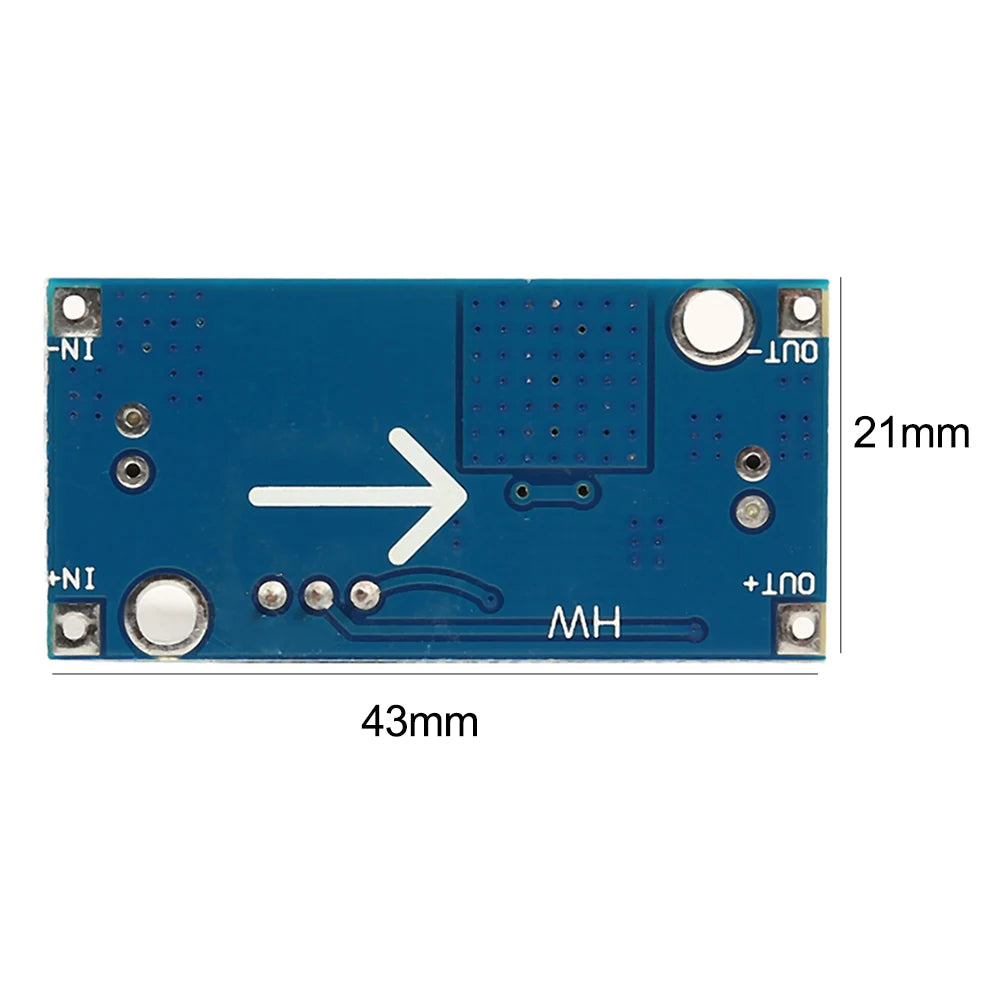

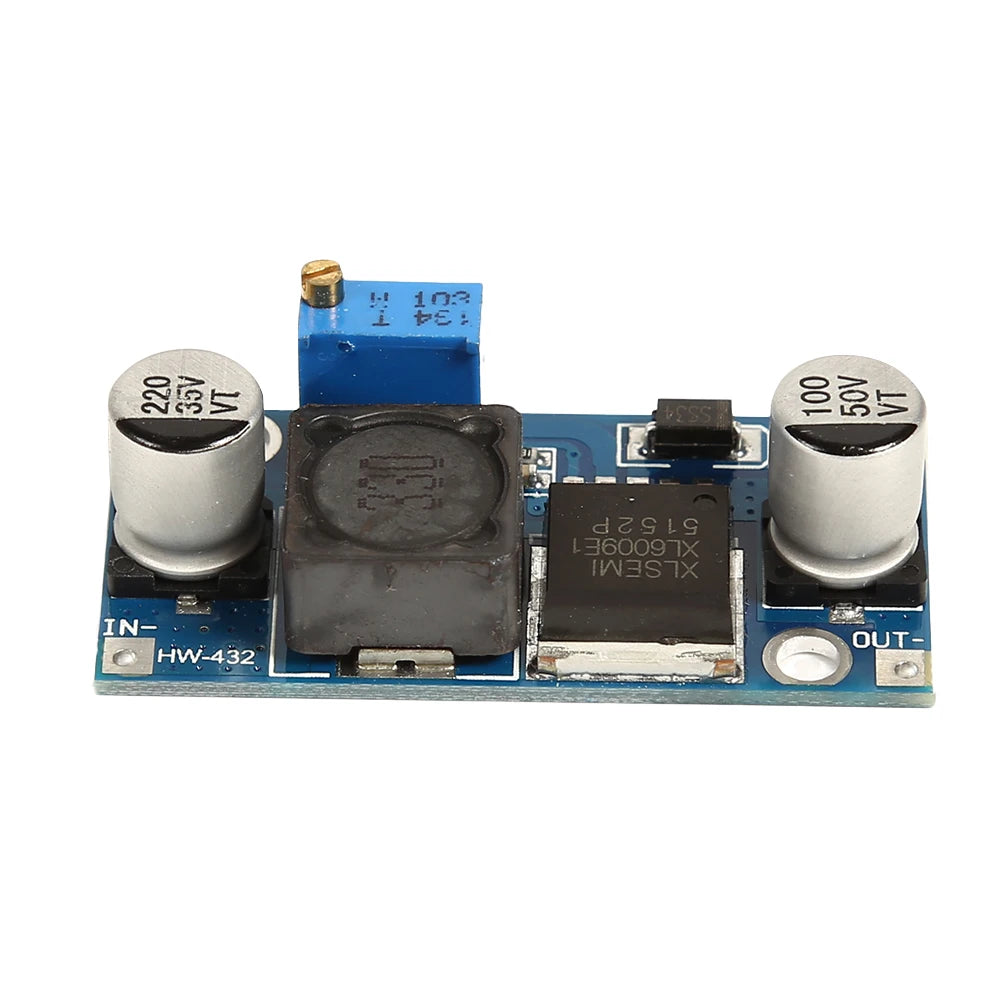

Product size: 43mm*21mm*14mm/1.69*0.82*0.55''
Packing weight: 11g
