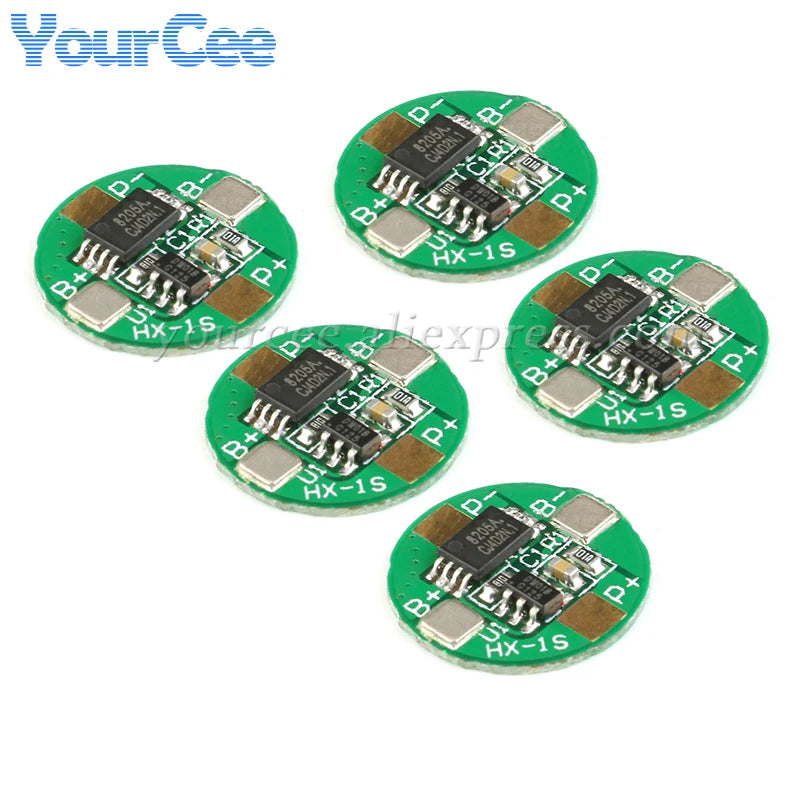

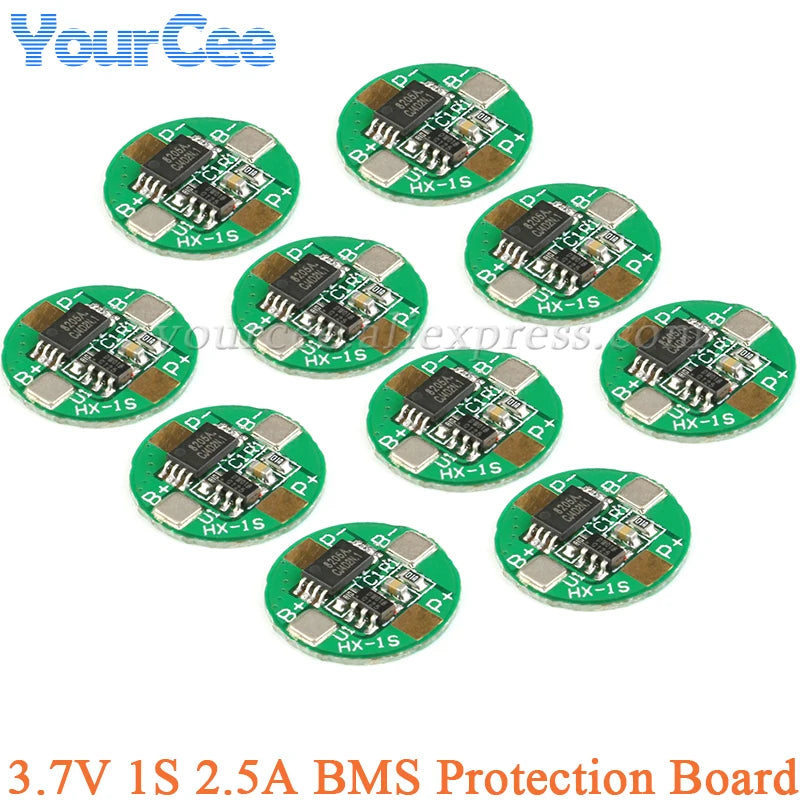

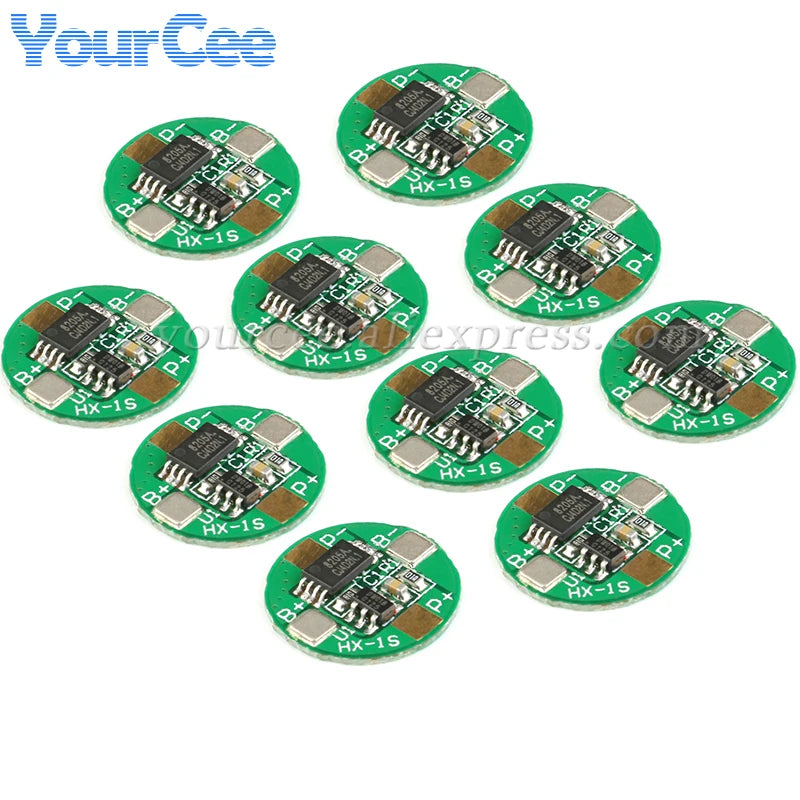

10pcs/1pc 3.7V 1S 2.5A 18650 li-ion BMS PCM Battery Protection Board Module PCB with Overcharge and Over Discharge Protection
10pcs/1pc 3.7V 1S 2.5A 18650 li-ion BMS PCM Battery Protection Board Module PCB with Overcharge and Over Discharge Protection
Regular price
$0.50 USD
Regular price
$0.00 USD
Sale price
$0.50 USD
Unit price
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: Your Cee
Origin: Mainland China
Condition: New
Type: Voltage Regulator
Model Number: 3.7V 1S 2.5A 18650 li-ion BMS PCM Battery Protection Board
Supply Voltage: 3.7V
Dissipation Power: low
is_customized: Yes
Operating Temperature: normal
Application: Computer
Package: TQFP
Technical Parameters
Overcharge detection voltage: 4.25±0.05V
Overcharge release voltage: 4.23±0.05V
Overdischarge detection voltage: 2.45 ± 0.1V
Upper limit continuous current: 2A
Overcurrent detection current: 2.5A
Charging voltage: 4.2V

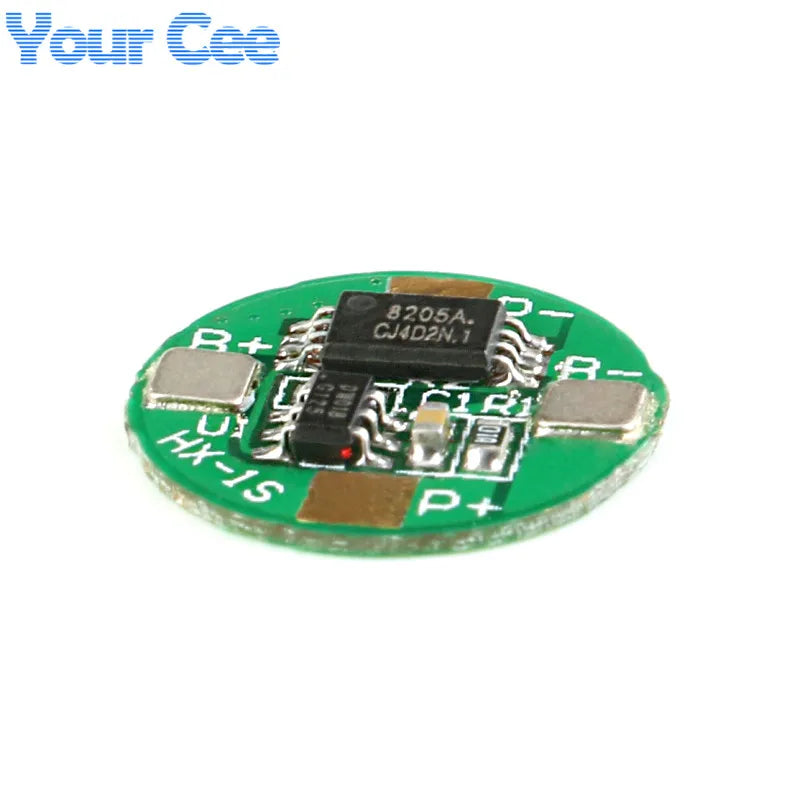

IC component: DW01+8205A
Quiescent current: < 30uA
Product size: 13.5*13.5*2.0MM
The Main Function
Overcharge protection, over discharge protection, short circuit protection, over current protection

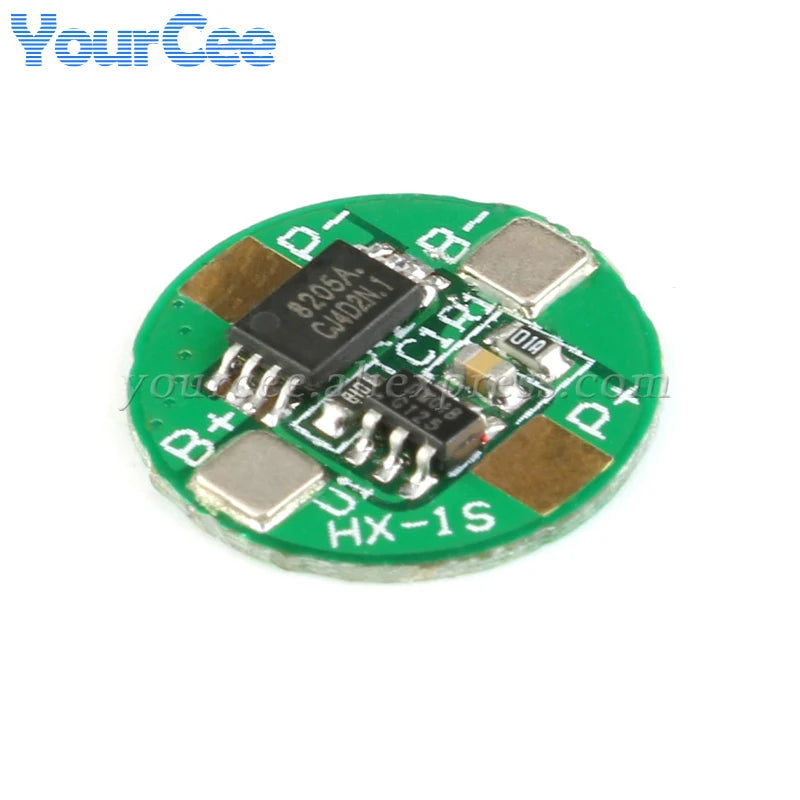

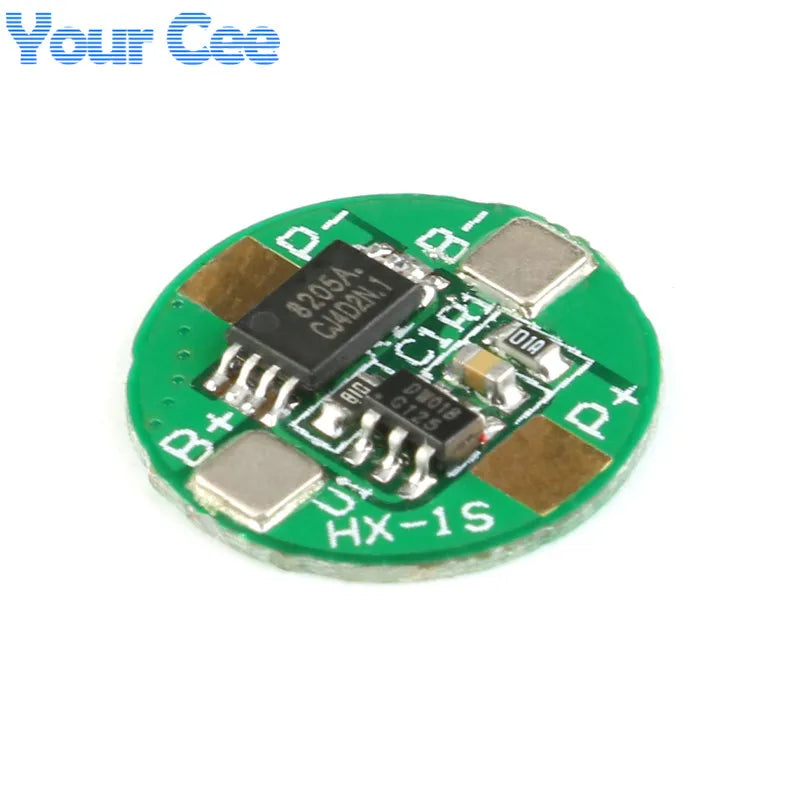

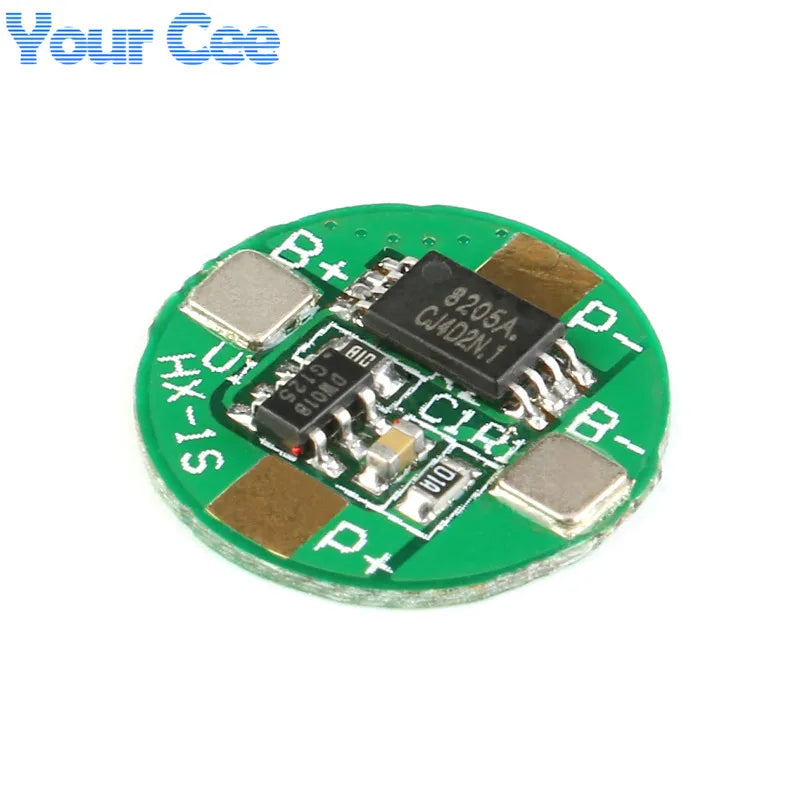

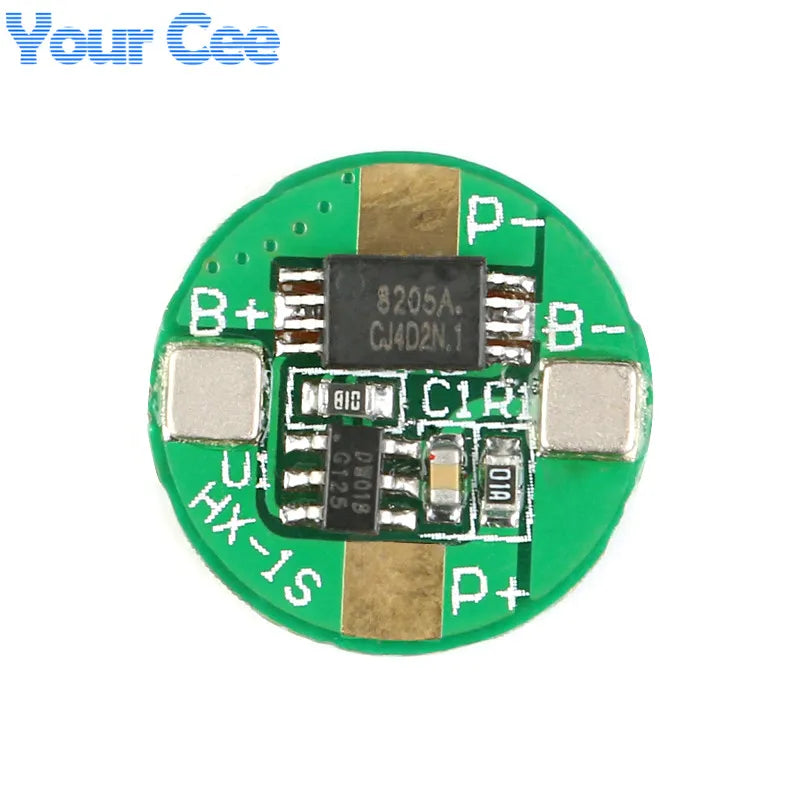

Wiring Instructions
B+: Connect the battery positive
B-: Connect the battery negative
P+: input positive for battery pack output
P-: Input negative for battery pack output
