50pcs Push Quick Wire Cable CH2 Connector 10A 220V 2 Pin Push-in Spring Loaded Electrical Connectors for Lighting Electrical

$2.77 USD

Sale Sold out

Taxes included.

Quantity

SPECIFICATIONS

Brand Name: NoEnName_Null

Origin: Mainland China

Model Number: 50pcs Push Quick Wire Cable CH2 Connector 10A 220V 2 Pin

Choice: yes

Push Quick Wire Cable Connector, 50pcs 10A 220V 2 Pin Push-in Spring Loaded Electrical Connectors for Lighting Electrical and Automotive Wiring Electricity

Features:

• Insulating Material --- The wire cable connectors is made of high quality PVC insulating fireproofing material, safe and non-toxic, corrosion resistance, high melting point, high temperature resistance.

• Electric Conduction --- Pressing sheet is high quality conductive steel spring, good elasticity, strong toughness, high rate of electricity, energy saving, corrosion resistance, wire quick connectors has high quality and safety.

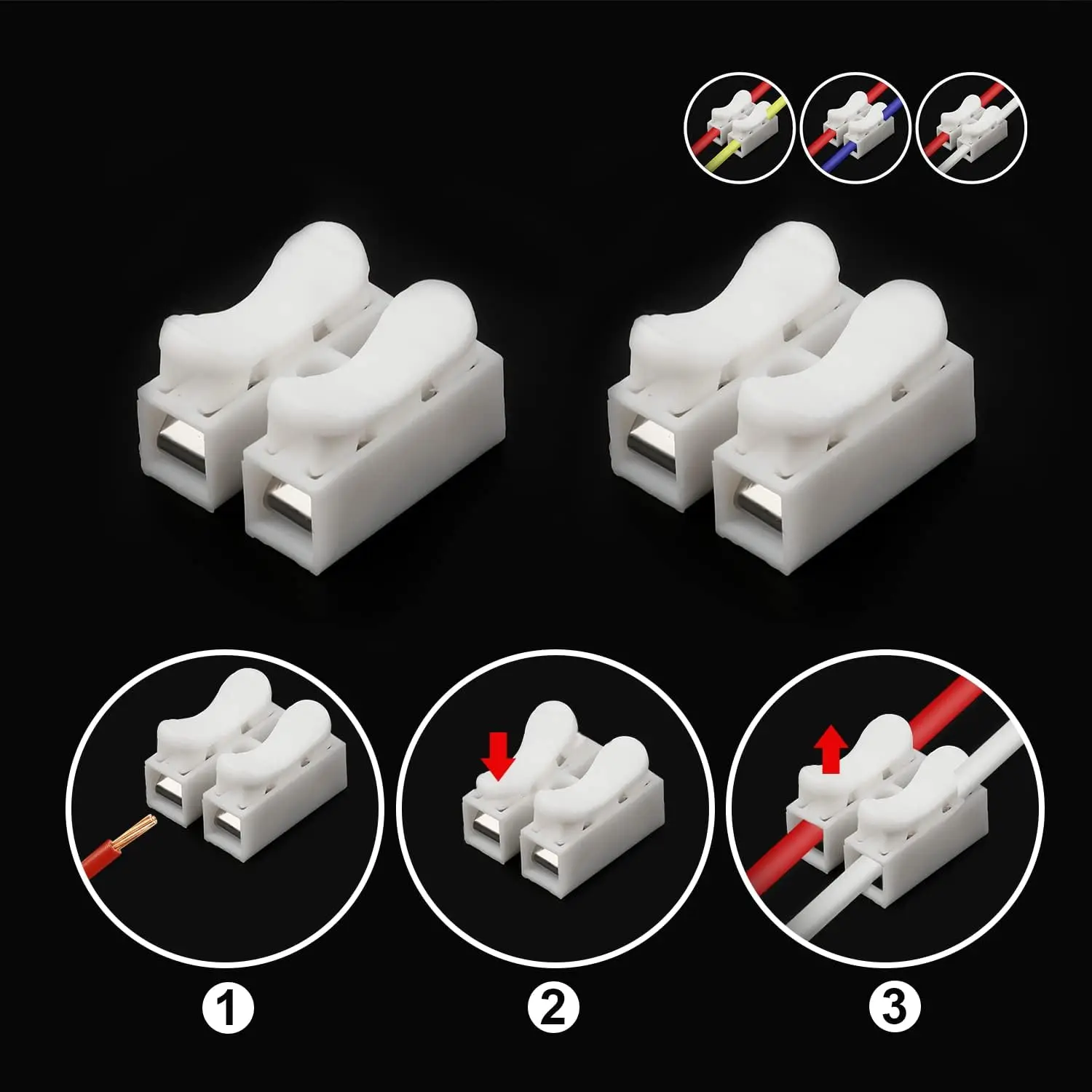

• Easy To Use --- The identification is clear, the L is connected to the Live line, the N is connected to the Neutral line. The spring wire connectors wiring operation is simple, no drilling screws, completely replace the electrician tape.

• Wide Application --- Quick wire cable connector operation widely used in lighting, power and automotive wiring. Push wire connector suitable for motor, electrical control, power, household appliances, lighting, machinery and wire joints.

• Packaging Included --- The 50pcs CH-2 quick spring wire connectors white terminal barrier block are suitable for the electrical connection of LED suction lamp.

Specifications:

Voltage : 220V

Current : 10A

Working Temperature : -40~150℃

Wiring : 0.3-2.5 mm² (stranded wire), 0.3-1.5 mm² (solid wire)

Size : 0.76 x 0.67 x 0.51"

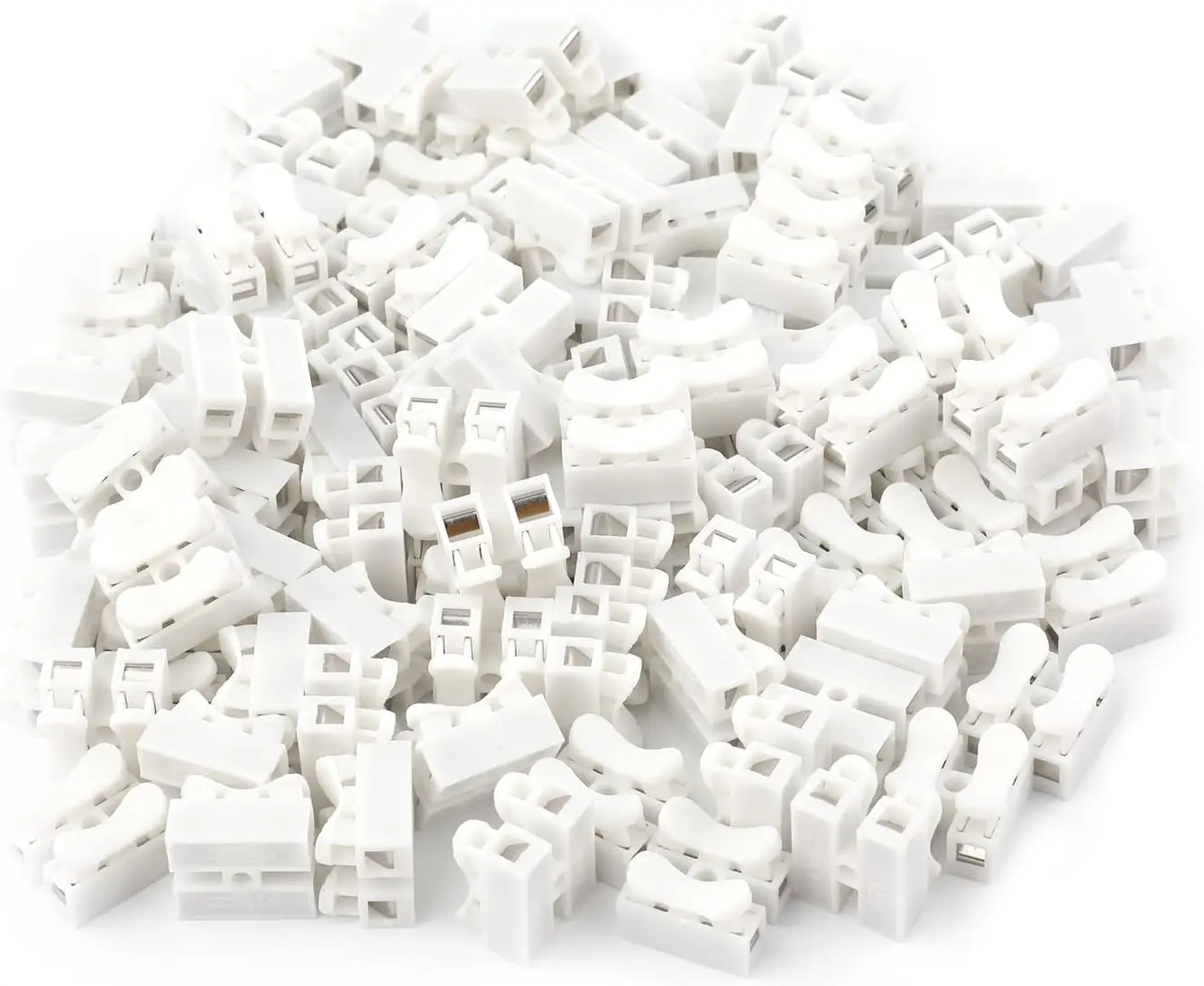

Quantity : 50pcs

Model : CH-2

Type : Terminal

Interface Type : DIN

Core Number : 2

Pin Number : 2
