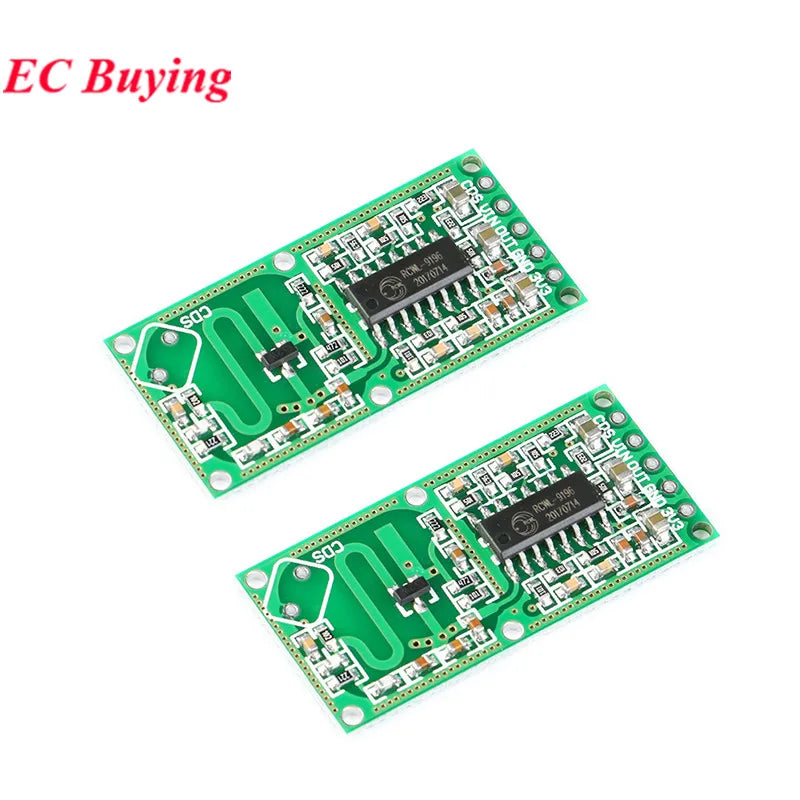

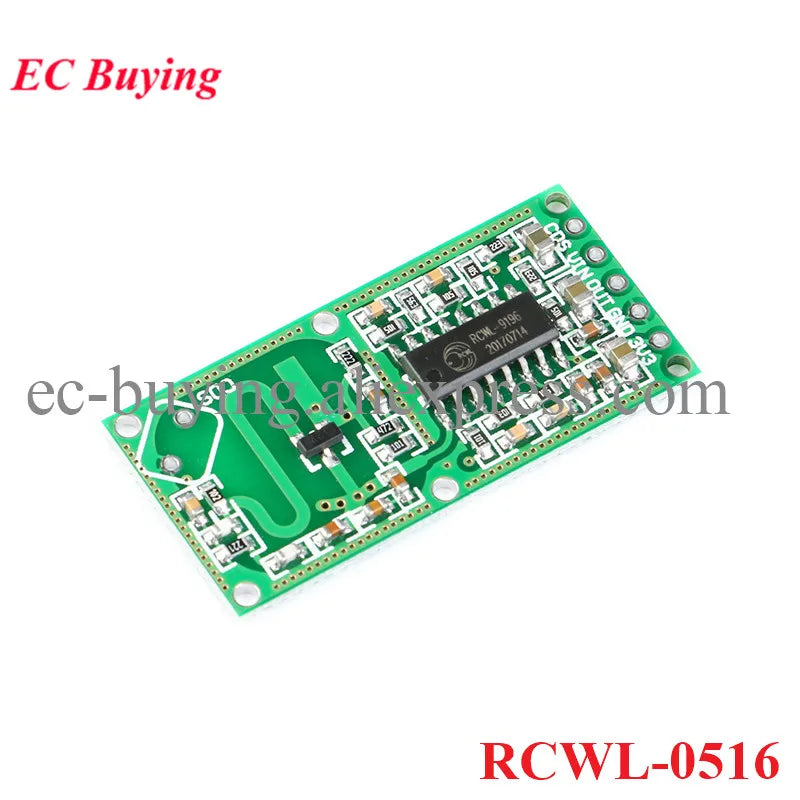

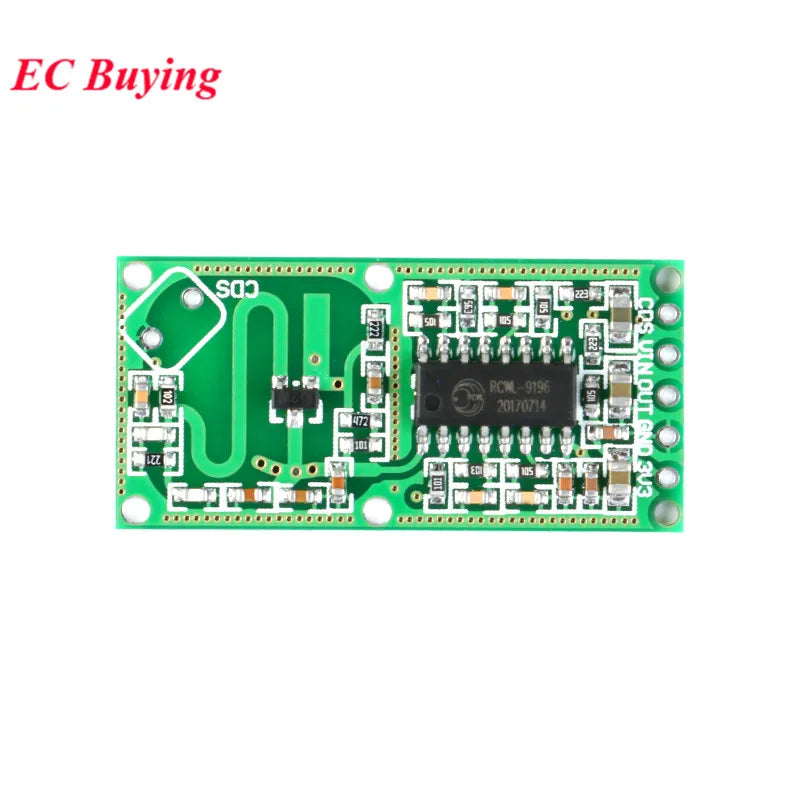

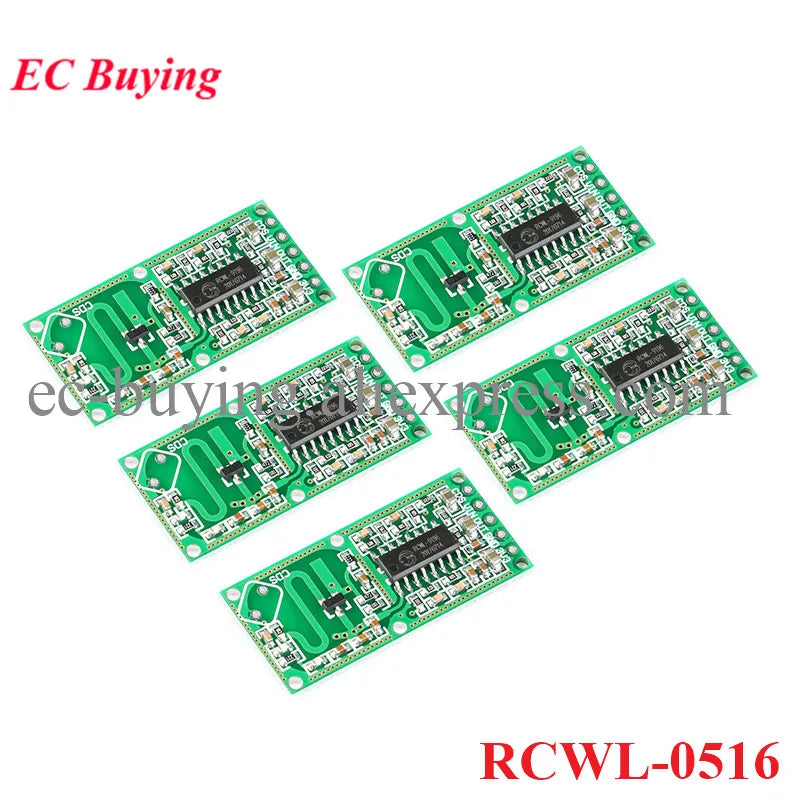

5pcs/1pc RCWL-0516 Micro Wave Radar Sensor Switch Board RCWL 0516 Microwave Human Body Induction Intelligent Module Output 3.3V

$2.49 USD

~~$0.00 USD~~ $2.49 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Quantity

SPECIFICATIONS

Application: Computer

Brand Name: EC Buying

Condition: New

Dissipation Power: 3.3V

High-concerned chemical: None

Operating Temperature: normal

Origin: Mainland China

Package: Module

Smart Electronics Experiment: Switch And Sensor For Arduino STM32

Supply Voltage: 3.3V

Type: Voltage Regulator

is_customized: Yes

Overview:

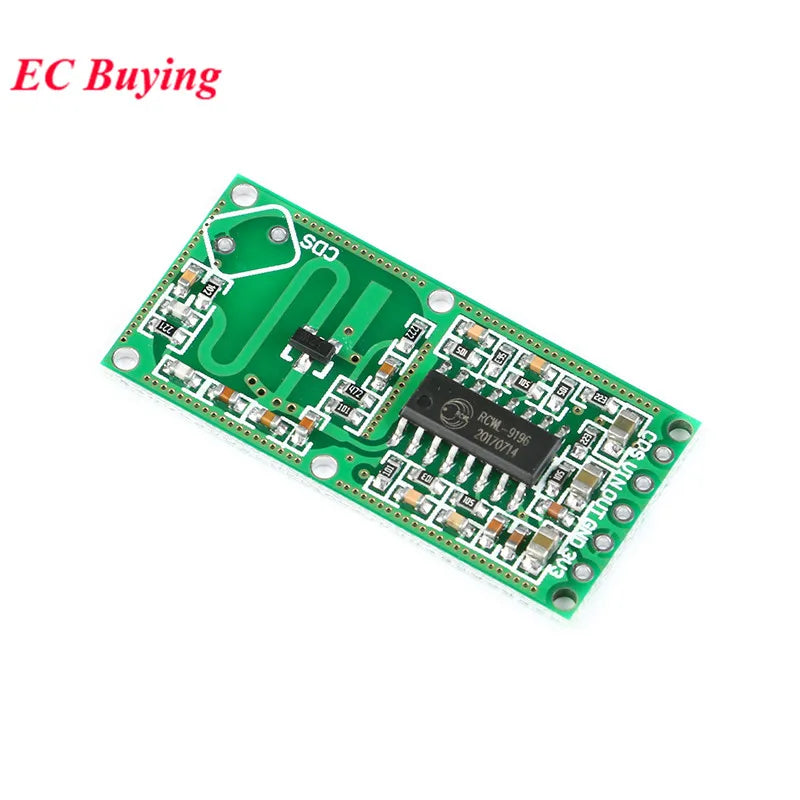

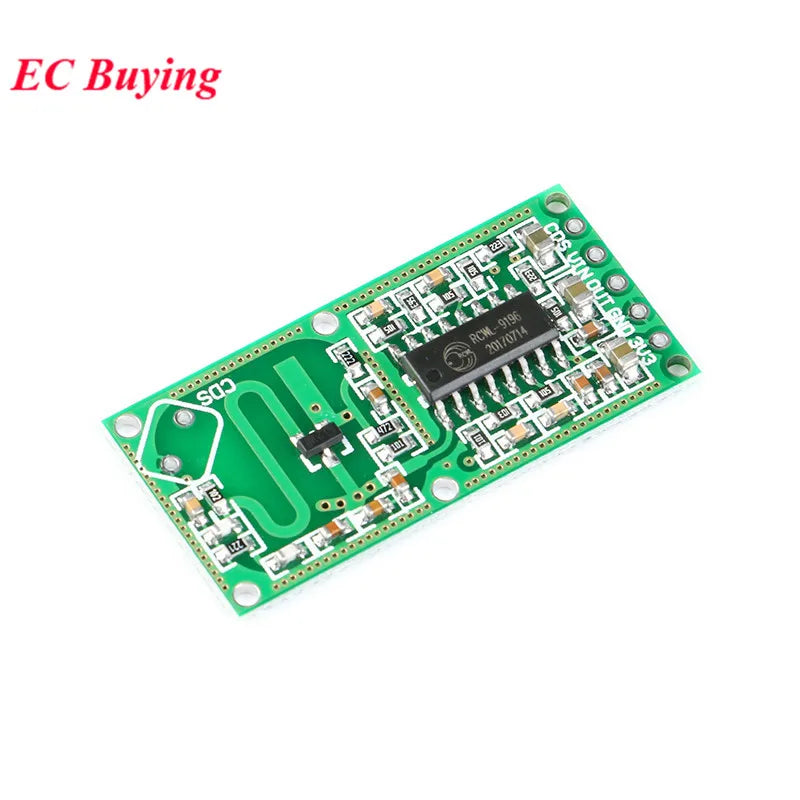

The RCWL-0516S is a microwave sensing module that uses Doppler radar technology to specifically detect object movement. The module has the characteristics of high sensitivity, long sensing distance, high reliability, large sensing angle and wide range of supply voltage. Widely used with a variety of human-induced lighting and burglar alarm and other occasions.

RCWL-0516 Microwave Radar Sensor Switch Module Human Sensor Module Smart Sensor Sensor Sensing distance of about 5-7 meters

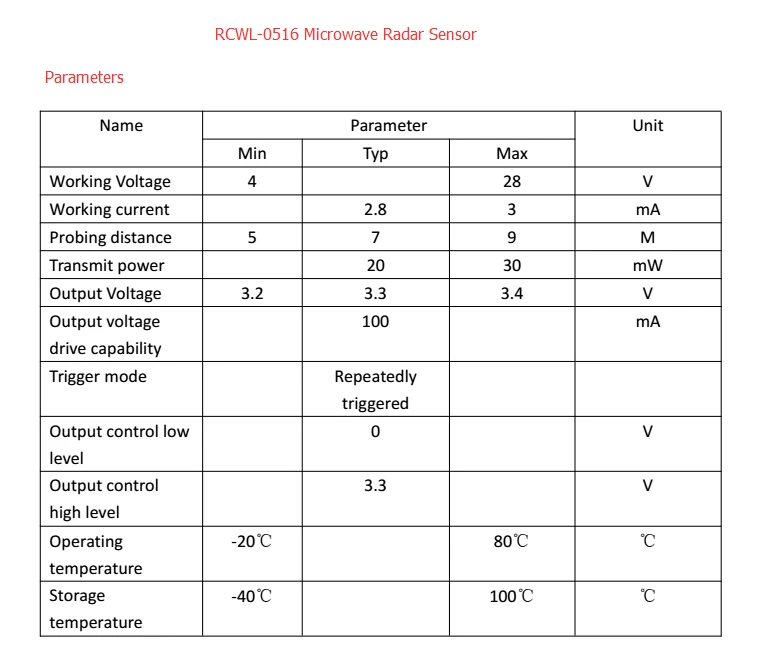

Features:

Using a dedicated signal processing control chip RCWL-9196
Working voltage: 4 ~ 28V
Compared with the traditional infrared sensor PIR, with penetration detection capability
Blocking time, adjustable distance
It could output 3.3V power

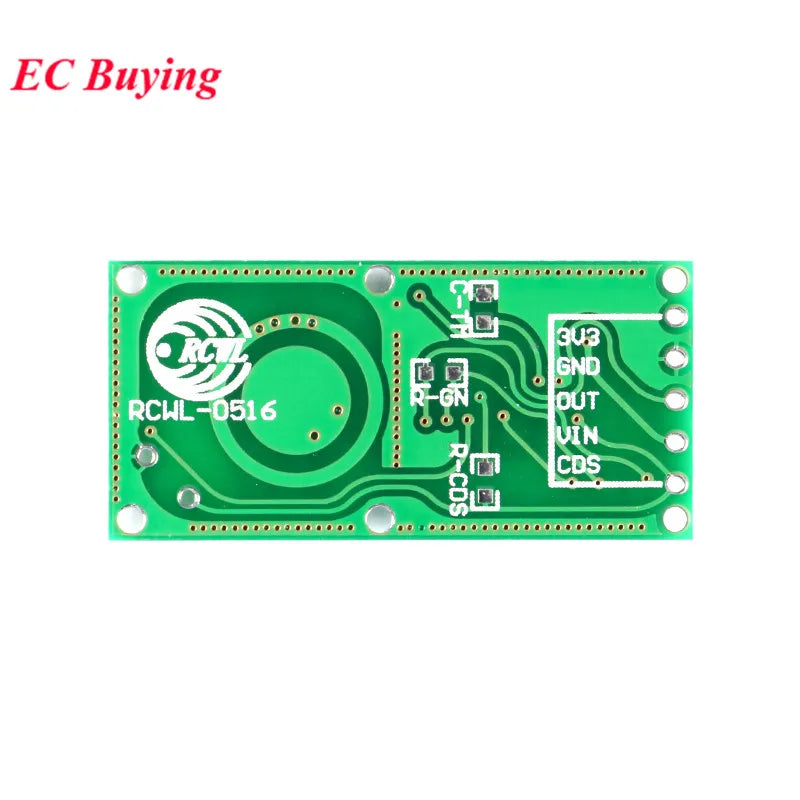

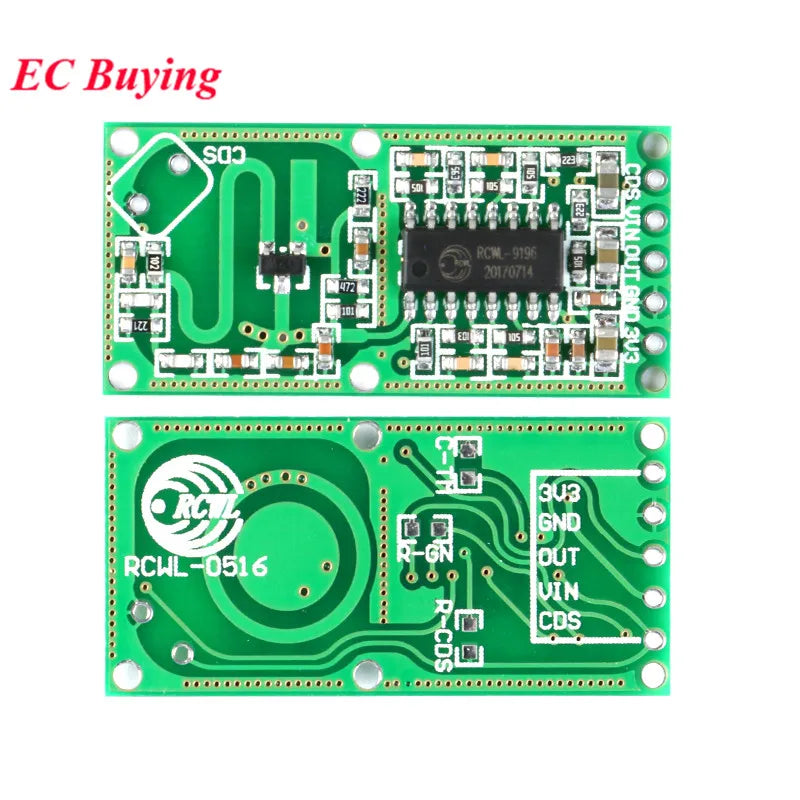

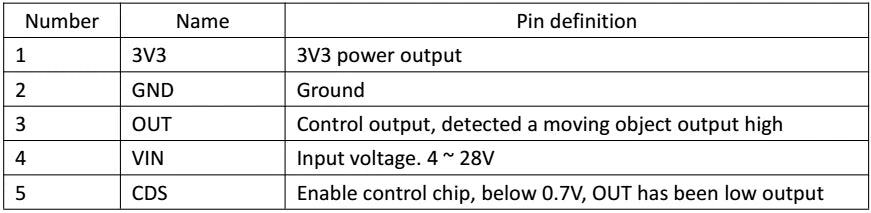

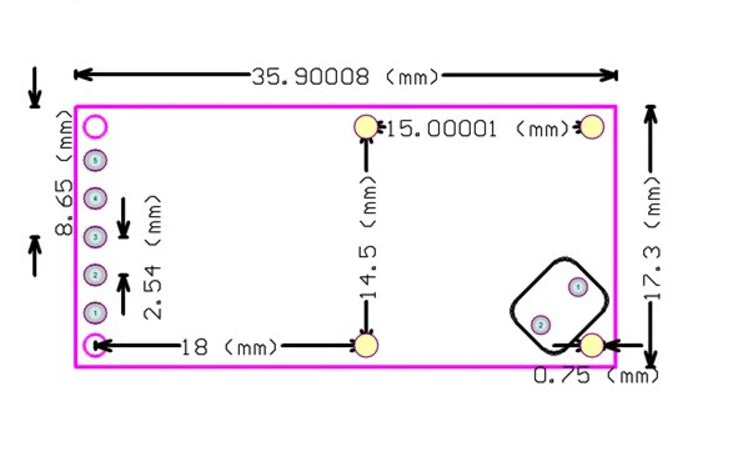

Pin Function Description

3V3: 3.3V output voltage, drive current 100mA

GND: ground

OUT: the control signal is output. When there is an object moving in the detection area, the OUT output is high. C-TM can set the repeat trigger time. If there is a trigger signal (with object moving) within the repeat trigger time, If there is no moving object in the detection area, output low level.

VIN: module power input, 4 ~ 28V

CDS: trigger control signal; less than 0.7V, OUT has been low; greater than 0.7V, the detection of normal work.

CDS pin external phototransistor, you can turn off the module detection function at night.

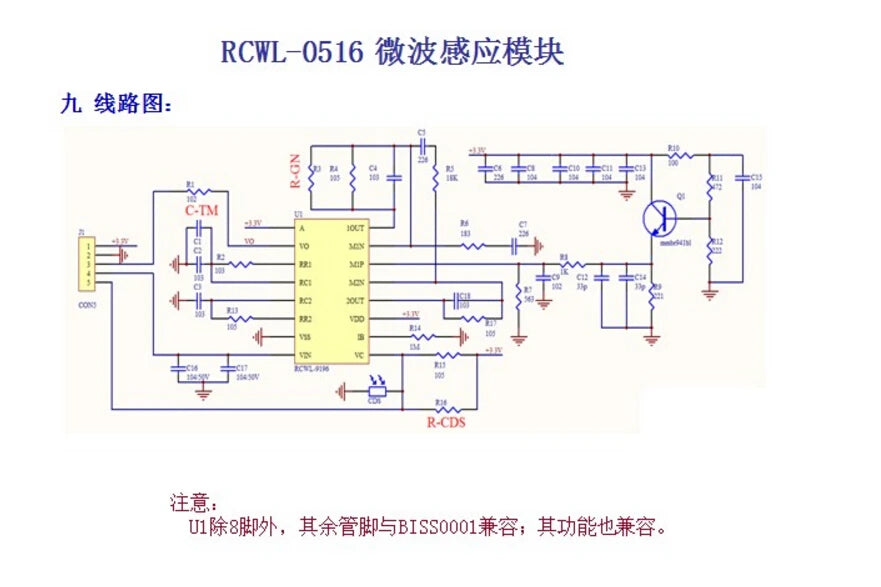

Adjustment section description

C-TM: adjust the repeat trigger time, mask human trigger time 2S. Increase the capacitance will increase the repeat trigger time, the actual calculation of the repeat trigger time can be as follows:

C-TM Department affixed to the capacitor, test the frequency of 3 feet 9196 f, repeated trigger time T = (1 / f) * 32768

R-GN: detection distance adjustment, then resistance, detection distance smaller. Missed, the detection range of about 7M, then 1M resistance, detection range of 5M. Customers can adjust according to the actual situation.

R-CDS: The internal VCC is connected in parallel to the CDS pin (9-pin 9196) via the R-CDS and the internal 1M resistor. The CDS is connected to the photoresistor to turn off the module detection function at night. The R-CDS value can be set according to the actual ambient brightness.

Application Notes:

the sensing surface in front of any metal can not be blocked.
before and after the induction surface to reserve more than 1CM space.
the module and installation of carrier plane as possible parallel.
a certain detection area effective application.
the module has a sensor surface is positive, the negative side of the negative sensing surface. Negative sensing surface effect is slightly less sensitive.
microwave module can not be applied in the same area of large-scale, otherwise there will be mutual interference, a single body spacing greater than 1M.
