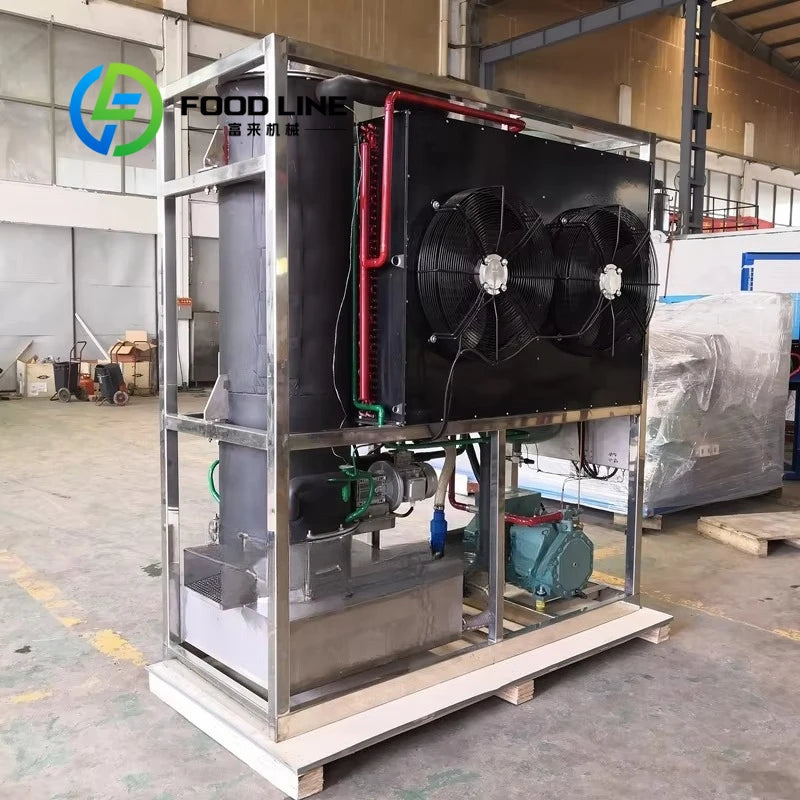

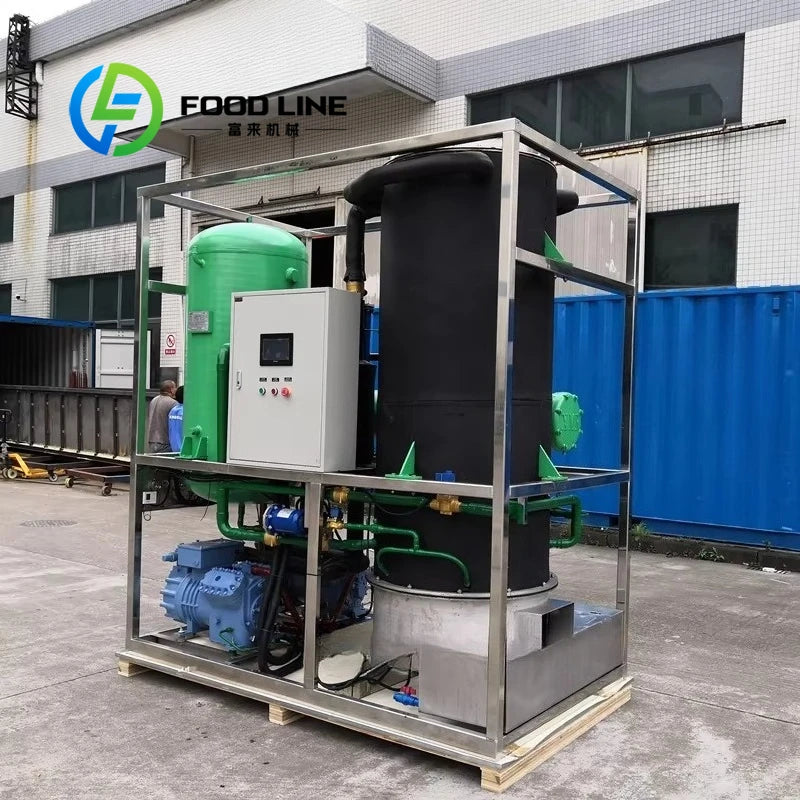

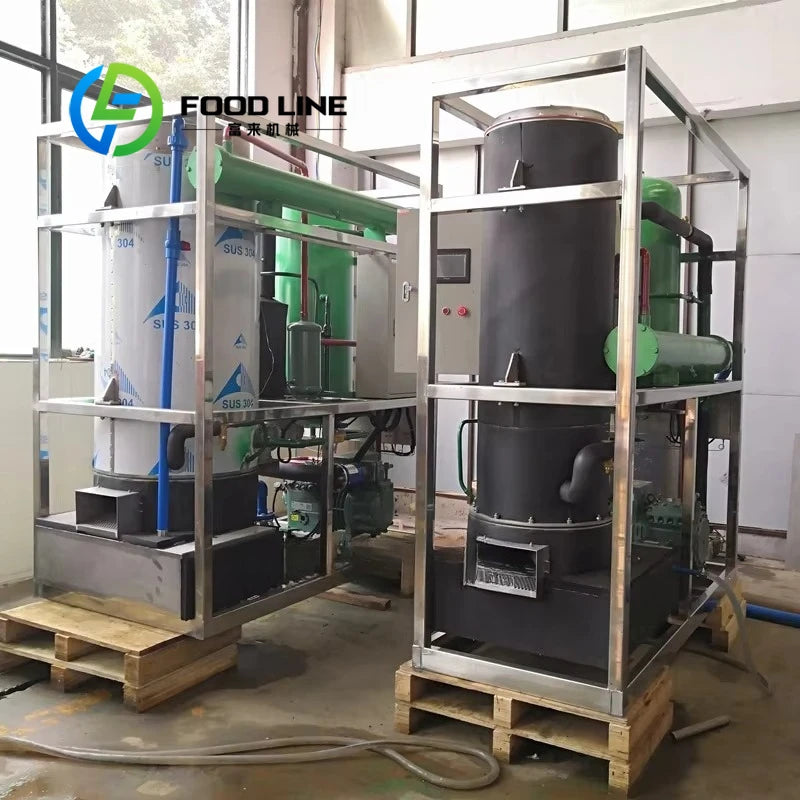

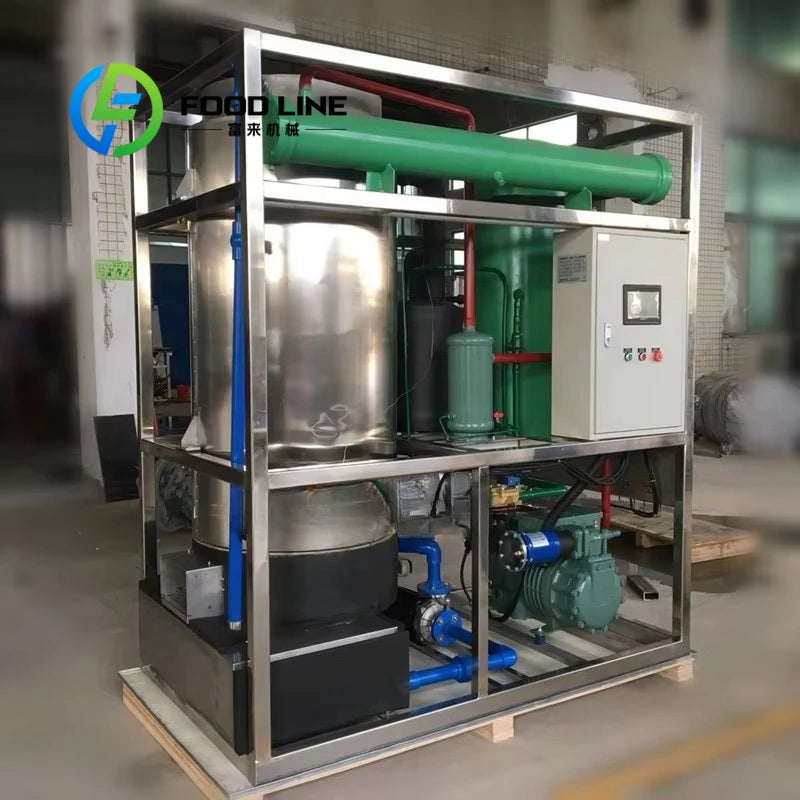

Industrial Ice Cube Making Machine Tube Ice Machine Price
Industrial Ice Cube Making Machine Tube Ice Machine Price
Couldn't load pickup availability

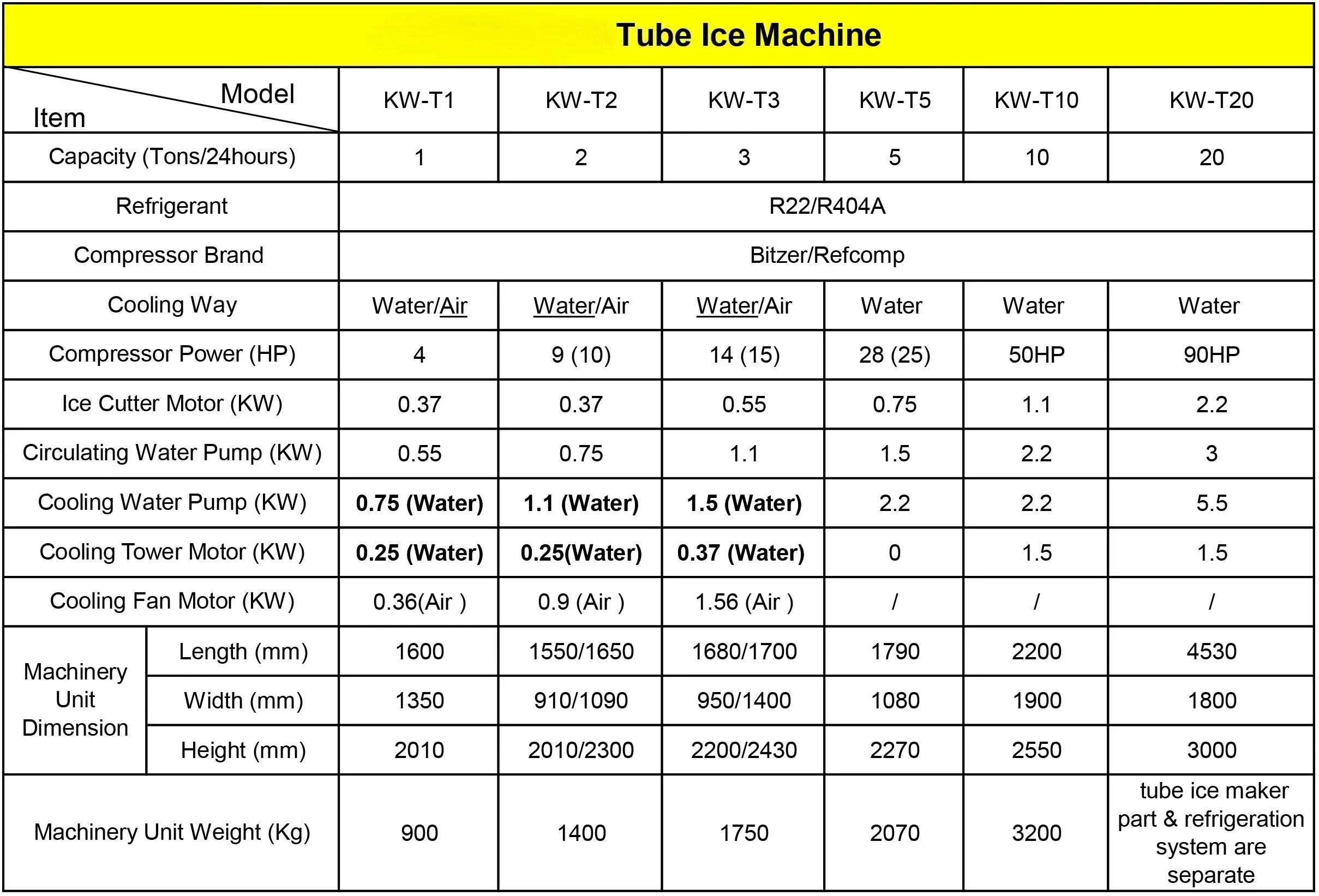

SPECIFICATIONS
After-sales Service Provided: Engineers available to service machinery overseas
Brand Name: NONE
Charge Status: Yes
Compressor: Bitzer/Refcomp
Compressor Power: 14 HP
Control system: Siemens PLC Program Control System
Cooling way: Air/Water Cooling
Electrical Components: LG(LS)
High-concerned chemical: None
Material: Stainless Steel 304
Material of mainframe: 304# Stainless Steel
Name: Tube ice machine
Origin: Mainland China
Tube ice diameter: 28~40mm
Weight (KG): 1200
application: Industrial
compressor brand: Bitzer
core components: Motor, Engine
dimension(l*w*h): 1660mm(L)*950mm(W)*2120mm(H)
ice shape: tube ice
ice storage capacity: 2.5 kg
key selling points: High Productivity
machinery test report: Provided
place of origin: Guangdong, China
power: 12kw
video outgoing-inspection: Provided
voltage: 380v, 50hz, 3p/220v, 60hz, 3p
warranty: 1 Year
If you have any questions, please feel free to contact Diana Wang. My contact information is below. We will reply to you as soon as we receive your message, so please don't worry!
Tel/Whatsapp: +86 13838529503
Email: dunlinjixie06@163.com

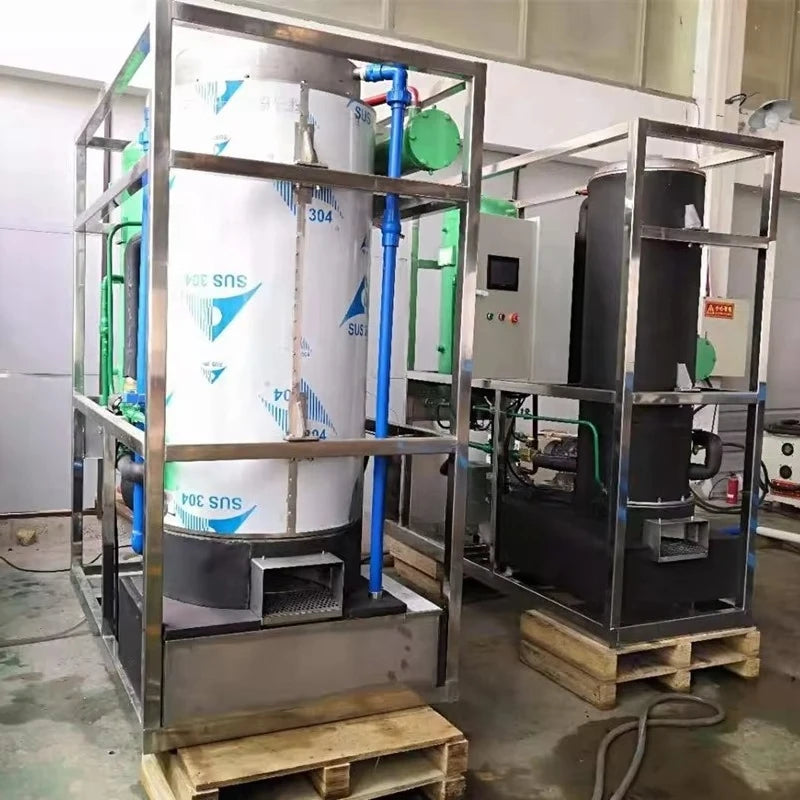

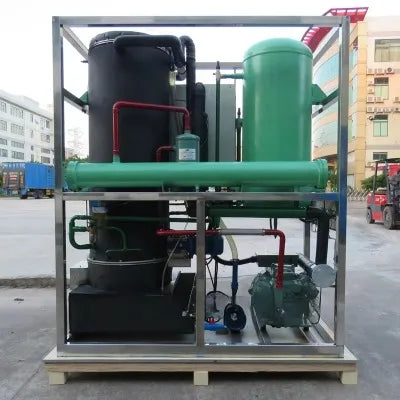

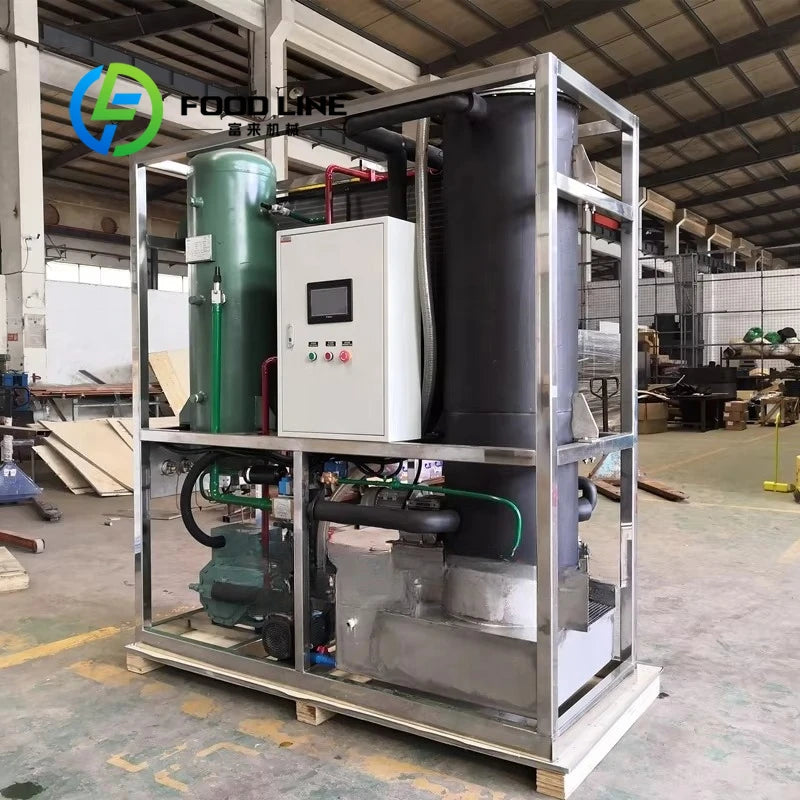

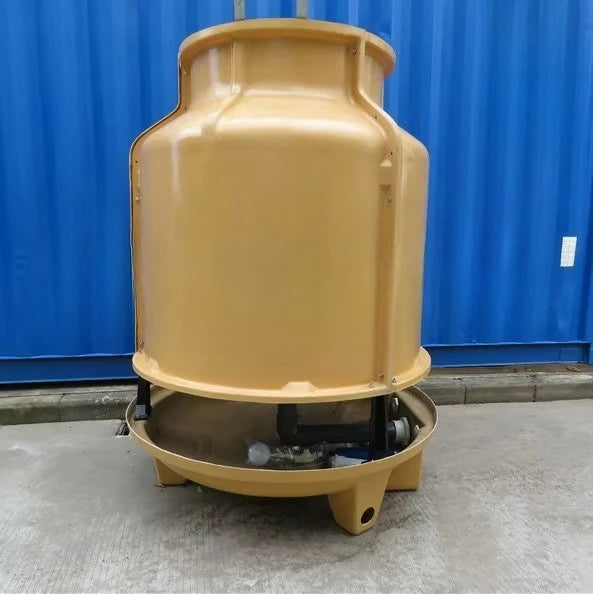

This product is cooled by water, so it has 2 parts: tube ice maker part and cooling tower, they are connecting by water pump and water pipes.
Main Features
1) Food-grade: we use the food-grade material to manufacture the machine, all the parts which are contacting water and ice are stainless steel 304.
2) Easy and safe operation: we use PLC micro-computer program and touch screen to control the machine, so it is easy to operate the machine; all the wires are well-protected, and the Freon gas is a kind of stable and safe gas, so it is safe to operate it.
3) Simple and economic packaging system: we can design a storage bin with a screw conveyor on its bottom, so you can take the ice out and pack them into plastic bags easily.
4) Power consumption: about 70~80KW*H to make 1 ton ice.
Water consumption: about 1.05 tons water to make 1 ton ice.

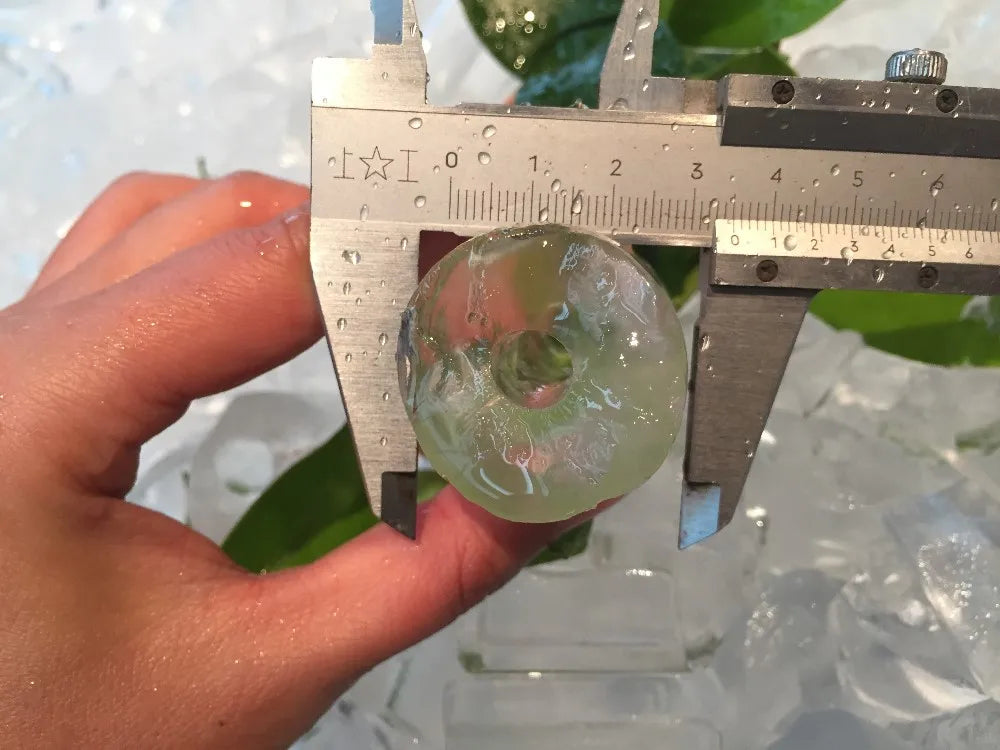

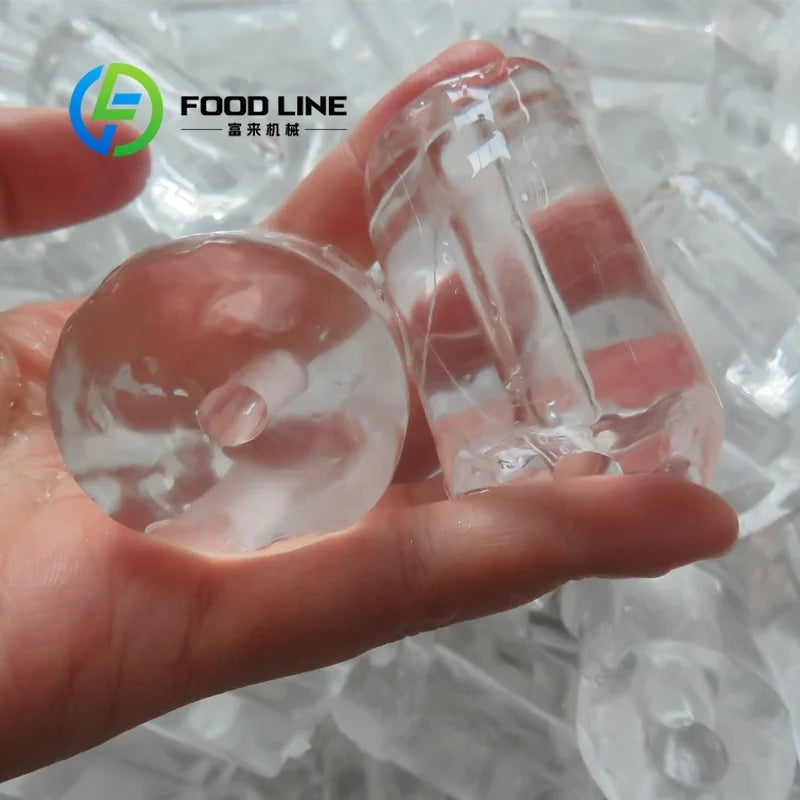

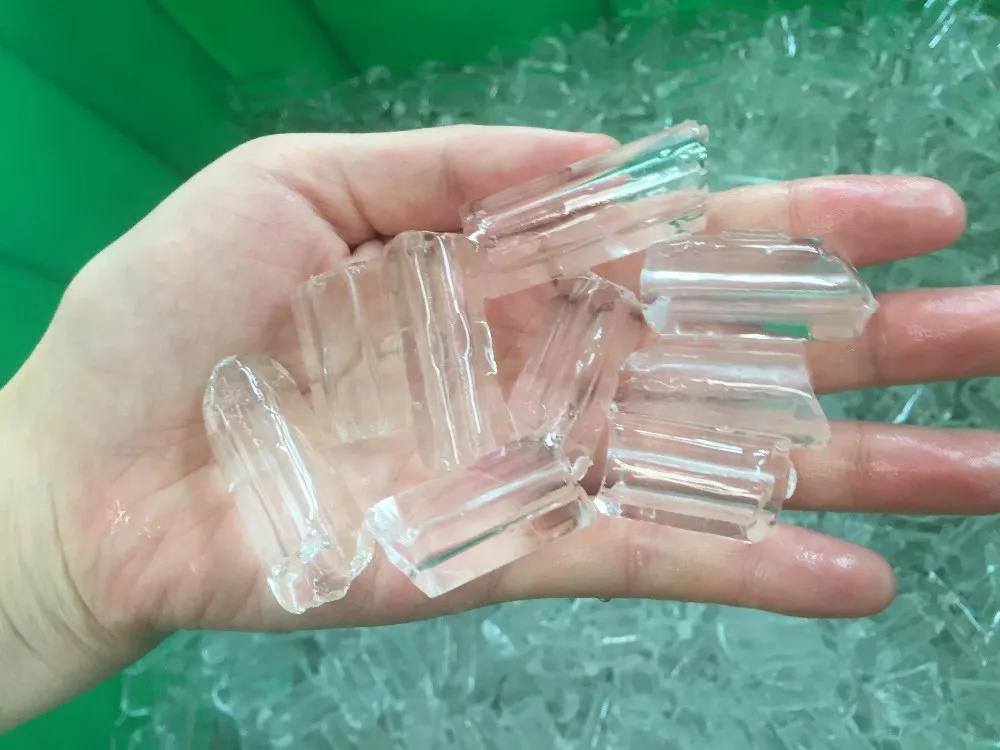

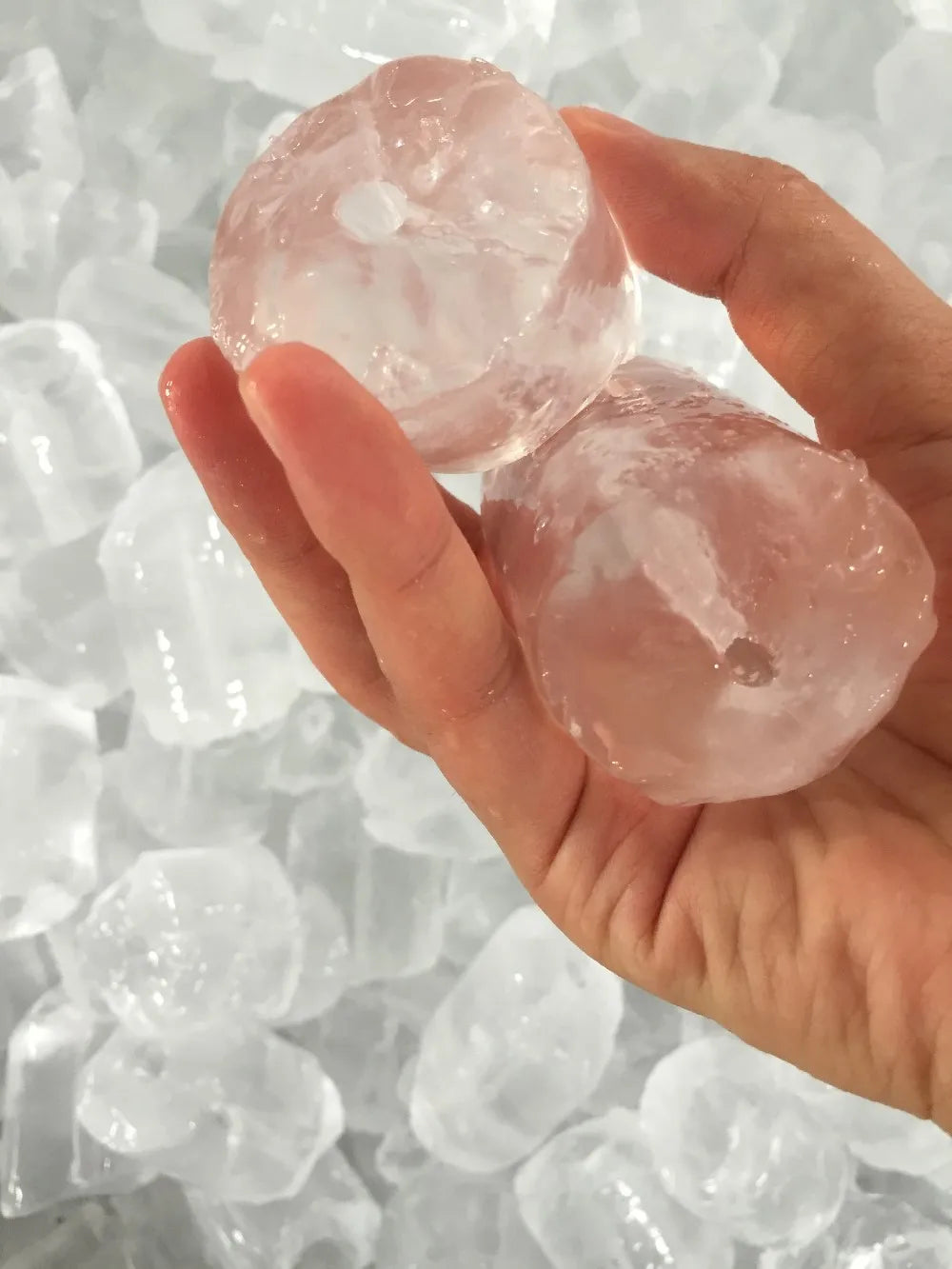

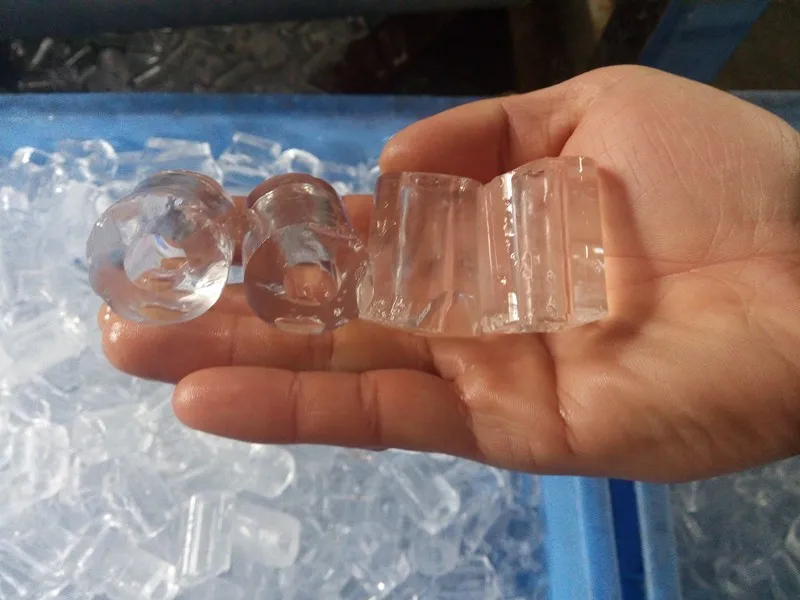

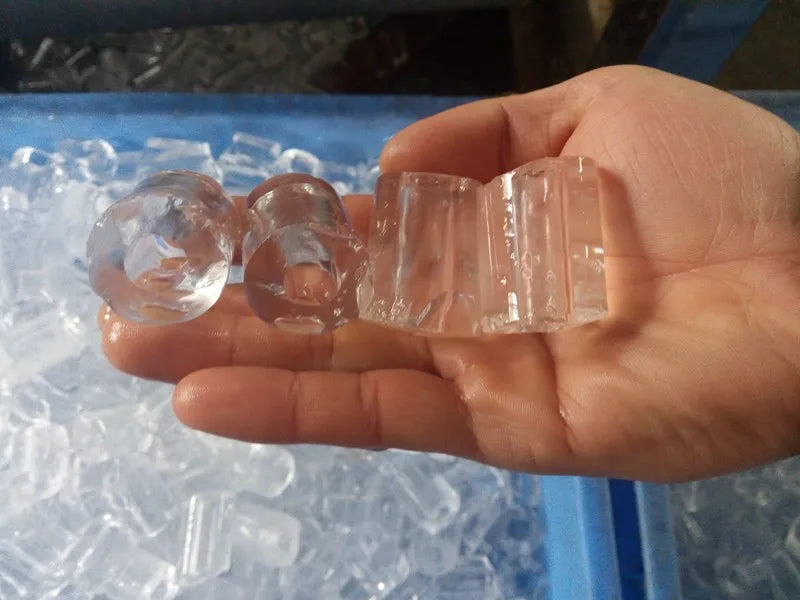

We have different tube ice for option, the inner hole can be adjusted 5~10mm
|
Outside Diameter of tube ice
|
Standard length
|
Freezing time
|
|
|
|
16mm
|
25mm
|
14 minutes
|
|
|
|
22mm
|
30mm
|
16 minutes
|
|
|
|
28mm
|
35mm
|
18 minutes
|
|
|
|
34mm
|
45mm
|
22 minutes
|
|
|
|
40mm
|
55mm
|
25 minutes
|
|
|
Dear Buyer:
This is a customized product, and the price shown is not the final price. We offer various delivery methods, including DDP, DAP, EXW, FCA, FAS, FOB, CFR, CIF, CPT, CIP, and DAT. Shipping costs will be calculated separately based on the delivery method.
We can customize colors, configurations, models, appearance, logos, engine types, and powertrains. Most importantly, you need to confirm product parameters with our customer service. Specific prices vary depending on the country/region and customs requirements; please contact Diana Wang for consultation. Orders without customer service confirmation will not be shipped. Thank you for your understanding!
